Application

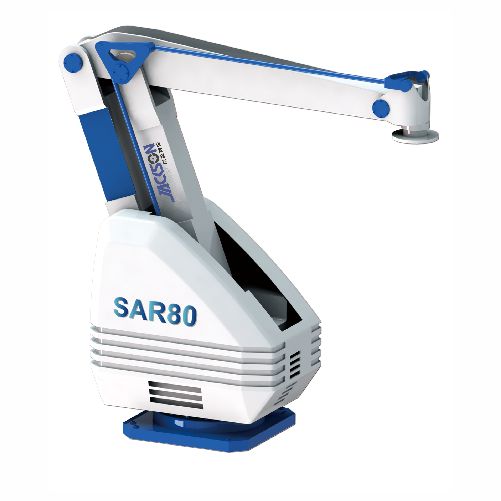

With the feature of high efficiency ,collaborative work,Jackson manufacturing robot is wilding used for the manufacuring plant to instead of the labor.
Advantages
◎It has the function of collision test,permit to customize collision level.
◎Max radius of activity 2550mm
◎It i wildely use to assemble,pick and place ,screw etc.

Main Technical Parameter
| Structure style | Vertical multi-joint robot | |
| Degree of freedom | Standard 4axis | |
| Payload | 80 KG | |
| Max radius of activity | 2550mm | |
| Repeated positioning accuracy | ±1mm | |

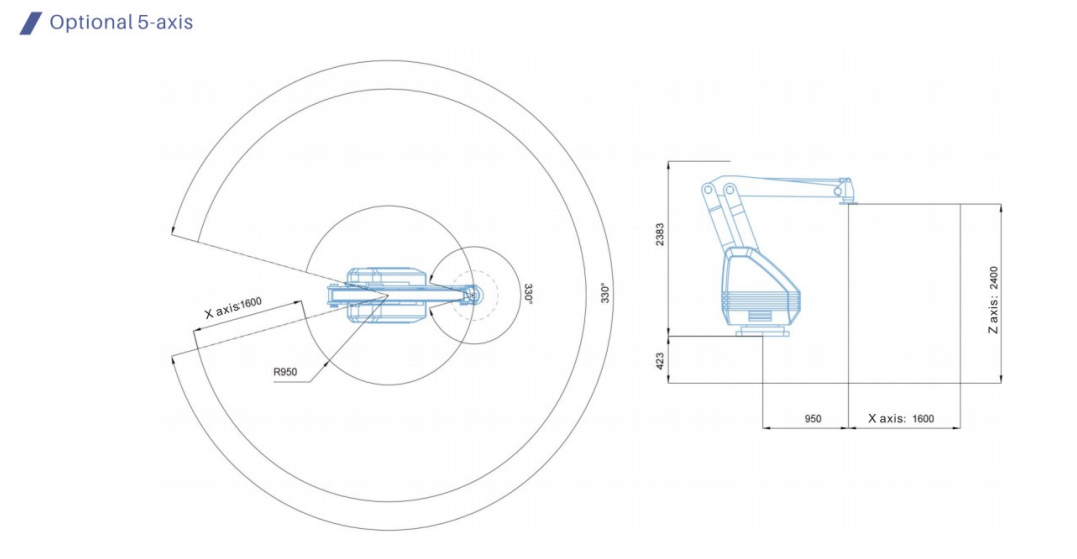

| Activity range | S axis | ±330° |
| Z axis | 2400mm | |
| X axis | 1600mm | |
| T axis | 330° | |
| Body weight | 750KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 |
|
| No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 4.5KVA | |
| Popular Version | The actual palletizing efficiency ≥ 500 times/H | |
| Confrontation version | Actual palletizing efficiency ≥ 750 times/H | |
| The tough version adopts imported configuration | The actual palletizng efficiency ≥1000 times/H | |
The above actual palletizing efficiency is based on the premise of grabbing the woven bag, and the speed of the suction or clamping
method is reduced.
