Application
Manufacturing Robots is an indoor industrial collaborative autonomous mobile robot, which can realize the automation of the material transportation, improve the speed of internal logistics, liberate the employees, improve the safety and productivity.
Advantages
◎Rapid deployment
◎Simple programming
◎Safe and reliable
◎Without any changing the layout of the workplace.

Main Technical Parameter
| Structure style | Vertical multi-joint robot | |
| Degree of freedom | 6axis | |
| Payload | 500 KG | |

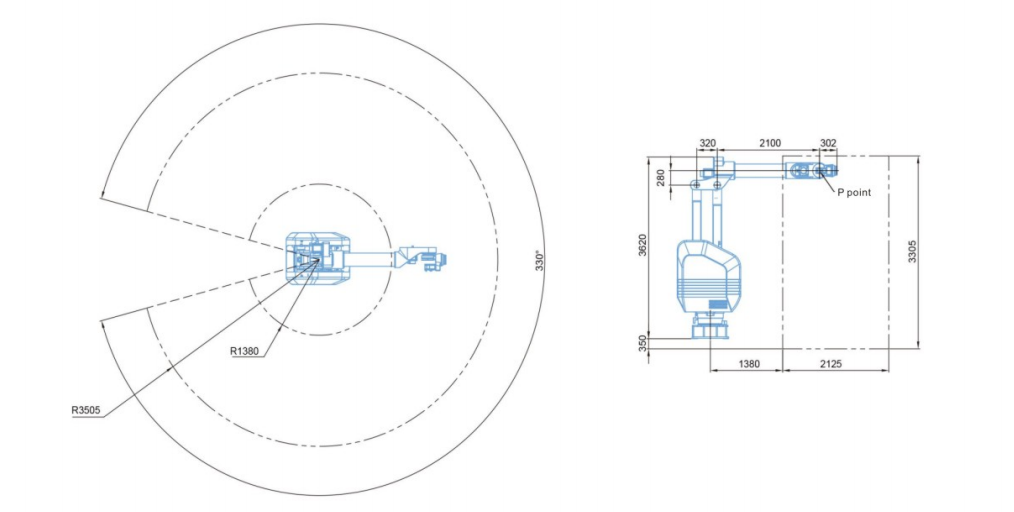

| Max radius of activity | 3505mm | |
| Repeated positioning accuracy | ±1mm | |
| Activity range | S axis | ±165° |
| L axis | 3305mm | |
| U axis | 2125mm | |
| R axis | ±135° | |
| B axis | ±130° | |
| T axis | ±360° | |
| Body weight | 1950KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 | |
| No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 13.50KVA | |
