Application
The manufacturing robotcan be used in construction industry, automoblie manufacturing,electronic equipment,shipbuilding,metal utensil manufacturing and other fileds.It save the labor and ensure the safty of production.
Advantages
◎High efficiency
Fast moving speed, flexible action,high work efficiency, wide application range
◎Large working space
Fast operation speed, repeated positioning accuracy
◎High safe emergency stop
Using safe relay loop and external double circuit emergency stop, it ensures the reliability of emergency stop

Main Technical Parameter
| Structure style | Vertical multi-joint robot | |
| Degree of freedom | 6axis | |
| Payload | 300 KG | |

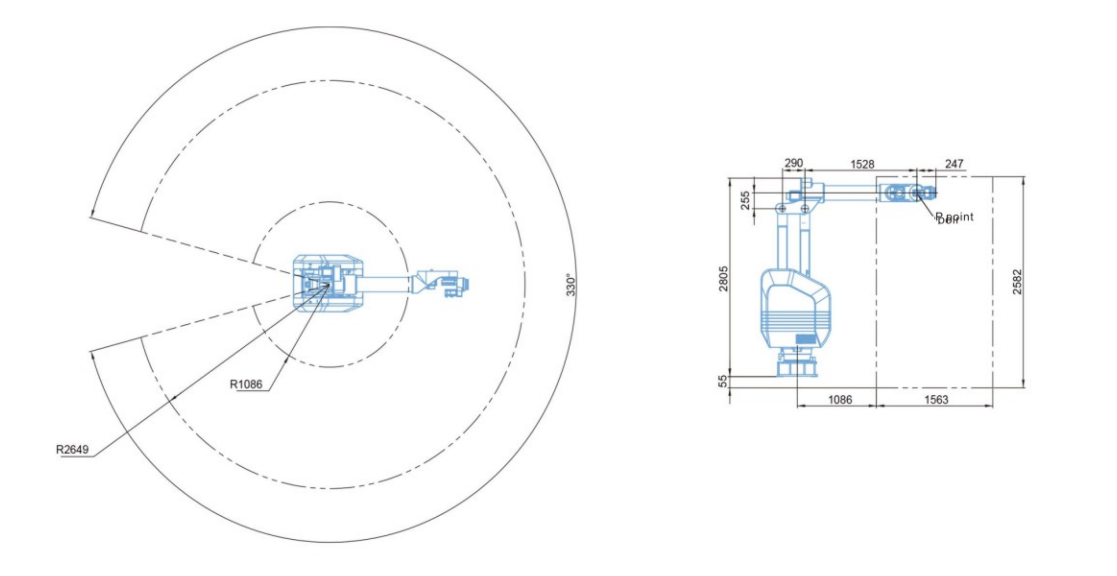

| Max radius of activity | 2682mm | |
| Repeated positioning accuracy | ±0.8mm | |
| Activity range | S axis | ±165° |
| L axis | 2582mm | |
| U axis | 1563mm | |
| R axis | ±135° | |
| B axis | ±130° | |
| T axis | ±360° | |
| Body weight | 1350KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 | |
| No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 10.5KVA | |
