Application:
Advantages:
1.Close outer wall or single wall.

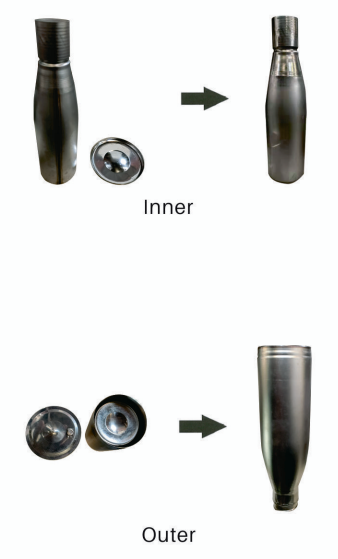

2.Flask bottom with disc.
3.High capacity.
4.No argon gas requirement. No need any argon torch setting.

Main Technical Parameters
|

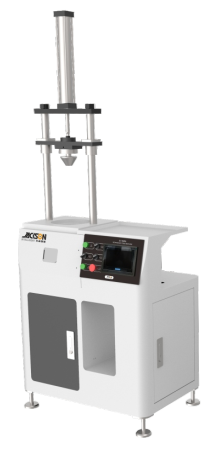

Model |
JSB-BWL1135 |
|
Function |
Single & double wall bottom welding |
|
Technology |
Servo system ,Laser welding,PLC control |
|
Working pipe diameter |
40-130mm |
|
Working height |
50-400mm |
|
Working thickness |
0.25-0.8mm |
|
Output |
3000-4000pcs/8h |
|
Voltage |
220V~ |
|
Power |
2.75kw(laser source:1kw, Chiller:1kw) |
|
Size |
900*600*2200 mm |
|
Weight |
540kg |
