Advantages:

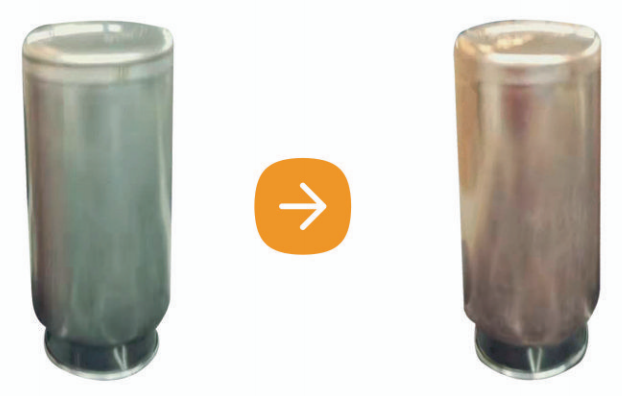

1.Improve insulation effect by copper plating process
2.More advanced than packing aluminum foil process, and the product will be more stable.
3.Easyoperate and high efficient only need worker loading and unloading, others will auto
4High production capacitv:200pcs finished in 1machine at same time.
Processing:

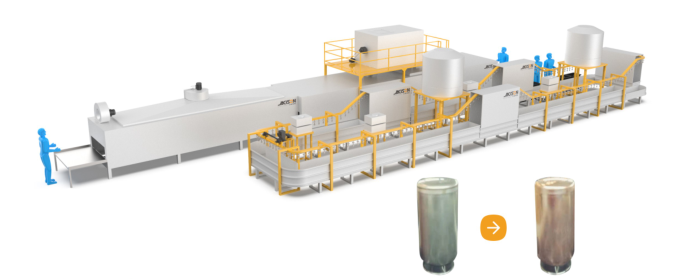

Loading →Auto Spray Cleaning →Nickel Plated →Auto spray cleaning →Nickel plated →Auto spray cleaning→ Passivation →Auto spray Cleaning →Unloading →Drying

Main Technical Parameters
|
Model |
JSB-copper |
|
Function |
Copper Plating in the outer wall of inner bottle, improve insulation effect |
|
Technology |
Auto electroplating process |
|
Working piece |
200pcs |
|
Hanger interval |
250mm |
|
Hanging speed |
1pcs/6s |
|
Working length |
50m |
|
Output |
8000 pcs |
|
Voltage |
AC 380V/AC 415V |
|
Power |
73 kw |
|
Weight |
3000kg |
