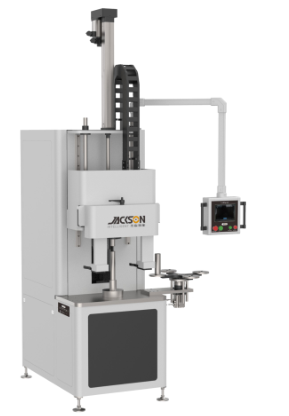

Auto Laser Servo Head/Rim Cutting Machinne

Item No.: 00375
Laser Head/Rim Cutting machine is an automatic model, which is mainly used for cutting waste and crafts at the mouth of the cup and pot.
Description Specifitcation Review
Description

Application:

  • Laser Head/Rim Cutting machine is an automatic model, which is mainly used for cutting waste and crafts at the mouth of the cup and pot.
  • The frame is made of sheet metal and 5# square tube welded and sprayed together, and the work panel is connected by A3 board and base structure.
  • Good stability, high efficiency and simple operation. Put the product into the equipment mold, press to start, the upper head mold goes down, the main shaft rotates 360°, and the servo motor pushes the cutting head to cut the edge.
  • Processed products are stable. It is an ideal equipment for metal utensil manufacturing and processing enterprises.

Advantages:

1.High production capacity.

2.Burr free cutting.

3.No maintenance.

4.Dust collector.

5.No trimming machine requirements.

6.Zero error length cutting on cup separation.

7.Servo system, PLC control.

8.The manipulator is integreated with the equipment, without additional installation and debugging of the manipulator.

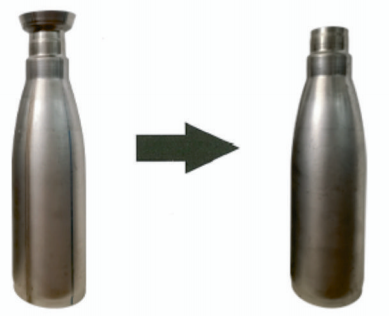

Head Rim Cutting

Specifitcation

Main Technical Parameters

Model

JSB-LG1030A

Function

Head/Rim cutting from spinning neck

Technology

Laser cutting, servo system, PLC control

Working pipe diameter

30-180mm

Working height

50-400mm

Working thickness

0.25-0.8mm

Output

4000-6000pcs/8h

Power

11.9kw(Laser source power: 1.5KW include)

Voltage

AC 380V/AC 415V

Size

1414*1500*3126mm

Weight

1500kg
