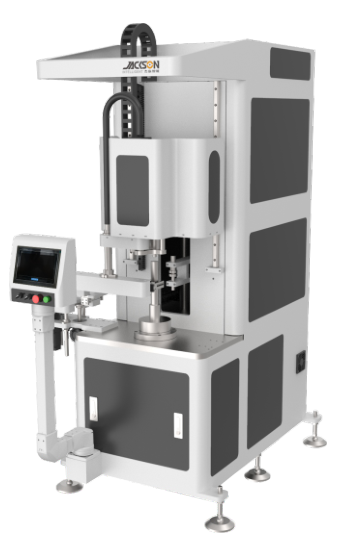

Auto Servo Top & Bottom Shaping Machine

Item No.: 00378
The top and bottom shaping machine is used for process of  insulated  bottle's shaping.
Description Specifitcation Review
Description

Application:

  • It is mainly used in the process of whole shouldering, rolling ribs, whole bottom and shaping of the inner tank and shell of the cup and pot.
  • The frame is made of 6# square tube welded together, and the work panel is connected by A3 board and plastic base structure.
  • Good stability, high efficiency and simple operation.
  • Put the product into the equipment mold, press to start, the upper head mold goes down, the spindle rotates, and the servo motor pushes the shaping to complete.
  • Processed products are stable. It is an ideal equipment for metal utensil manufacturing and processing enterprises.

Advantages:

1.Save human source, two operation can do by one machine.

2.Easy operation and control.

3.High precision machine.

4.Servo control, PLC control.

5.The manipulator is integrated with the equipment, without additional installation and debugging of the manipulator.

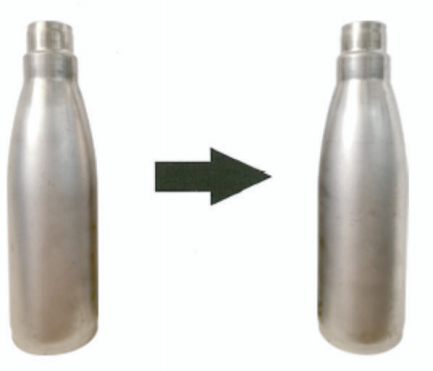

insulated bottle shaping

Specifitcation

Main Technical Parameters

Model

JSB-Z1030A

Function

Top & bottom shaping

Technology

Servo control, PLC control

Working diameter

30-180mm

Working height

0-400mm

Working thickness

0.25-0.8mm

Working distance

400mm

Output

3000-4000pcs/8h

Power

7.2kw

Voltage

AC 380V/AC 415V

Size

1414*1500*3102mm

Weight

1500kg
