Name: Automotic Manipulator For Industrial Application
Brand: SHANTOU JACKSON INTELLIGENT MACHINERY CO.LTD
SKU: RMB08/20/50/120/160/200/300
Availability: InStock
Rating: 5 (1 reviews)

Home > ROBOTS > Robotic Arm

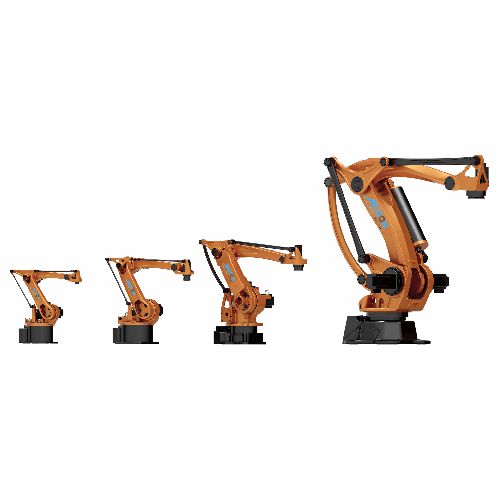

Automotic Manipulator For Industrial Application

Description Specification Review

Description

Application

Jackson automatic manipulator instead of labor, and has a wilde industrial application, such as palletizing,depalletizing,handling,punching,and unloading in packaging,beverage,chemical,food and other fields.

Advantages

High cost performance

Instead of human labor,it helps you reduce the investment costs effectively , and apply for all kinds of handling, press and other industrial applications.

Convenient maintain

The automatic structure is simple. Using a modular component structure and the combined type deceleration mechanism, it is easy to maintain .When happen to the failure ,it can be quickly maintain and resume production.

High reliability

The manipulator adopts high performance core components, stable and high reliability guarantee ,which can ensure the continuous perform production tasks for a long time

Wide Application

General performance can be widely used in various industries, such as palletizing,depalletizing,handling,punching and other. hot forging, stamping and loading industry

Flexible arrangement

Its production connection mode can be adjusted.It can quickly realize the flexible production and the subsequent scheme change design and expand its application.

Specification

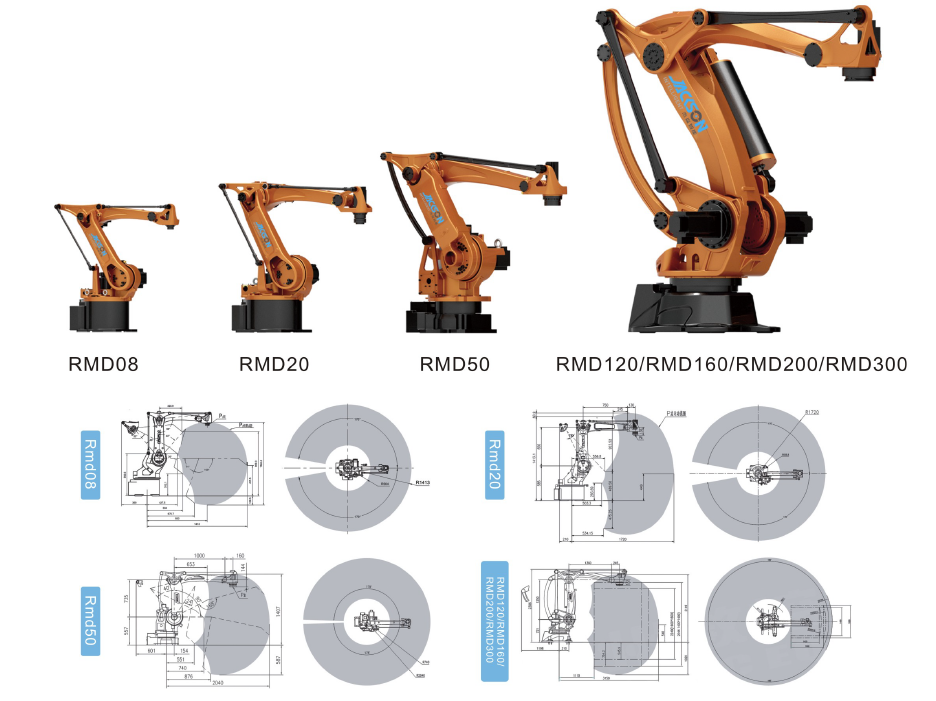

Main Technical Parameter

Model	Degrees of freedom	Method of drivemode	Payload(kg)	Repeat Ability (mm)	Rangeof motion( °)				Max speed(°/s)				Maxattached inertia (kg*m2)	Loop beat (time/h)	Motion radius (mm)	Weight (kg )
Model	Degrees of freedom	Method of drivemode	Payload(kg)	Repeat Ability (mm)	J1	J2	J3	J4	J1	J2	J3	J4	Maxattached inertia (kg*m2)	Loop beat (time/h)	Motion radius (mm)	Weight (kg )
RMD08	4	ACServoDrive	8	±0.08	±170	+90-28	+68~90	±360	251	195	195	367.5	0.25	1800①	1413	180
RMD20	4	ACServoDrive	20	±0.08	±170	+115-25	+70-90	±360	160	170	190	330	0.51	1780①	1720	256
RMD50	4	ACServoDrive	50	±0.2	±178	+90-40	+65~-78	±360	171	171	171	222	4.5	1700②	2040	660
RMD120	4	ACServoDrive	120	±0.3	±180	+100-44	+121~-15	±360	128	126	135	300	78	1560③	3150	1500
RMD160	4	ACServoDrive	160	±0.3	±180	+100-44	+121~-15	±360	123	123	128	300	78	1500③	3150	1500
RMD200	4	ACServoDrive	200	±0.3	±180	+100-44	+121~-15	±360	105	107	14	242	78	1300③	3150	1500
RMD300	4	ACServoDrive	300	±0.5	±180	+100-44	+121~-15	±360	85	90	100	190	134	1000③	3150	1500

Remark:

①The test track is 150mm high and 1000mm wide, and the actual cycle time is affected by the actual working conditions;

②The test track is 200mm high and 1000mm wide, and the actual cycle time is affected by the actual working conditions;

③The test track is 400mm high and 2000mm wide, and the actual cycle time is affected by the actual working conditions;

Avoid contact with fammable, explosive and corrosive gases and liquids; do not splash water, oil, dust; keep away from electrical
