Application:
Advantages:
1.To protect user by making the single wall bottle edge round.
2.Pre- welding , make outer wall lose inner wall.
3.Accuracy: Tolerance ±0.1mm.
4.High capacity.

Main Technical Parameters
|
Model |
JSB-B1030 |
|
Function |

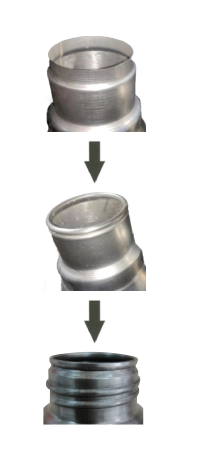

a. Single wall mouth edge inner beading & pressing; b. Bending edge of outer wall close to inner wall. |
|
Technology |
Servo control, PLC control |
|
Working diameter |
30-180mm |
|
Working height |
0-400mm |
|
Working thickness |
0.25-0.8mm |
|
Air pressure |
0.6Mpa |
|
Output |
3000-4000pcs/8h |
|
Power |
4.5 KW |
|
Voltage |
AC 380V/AC 415V |
|
Power |
2.8kw |
|
Size |
820*1030*2270mm |
|
Weight |
380kg |
