Application:

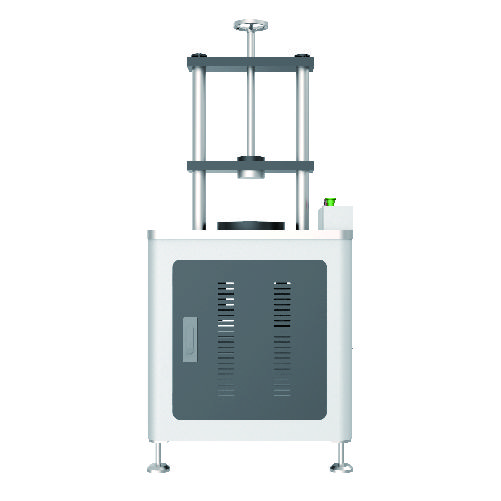

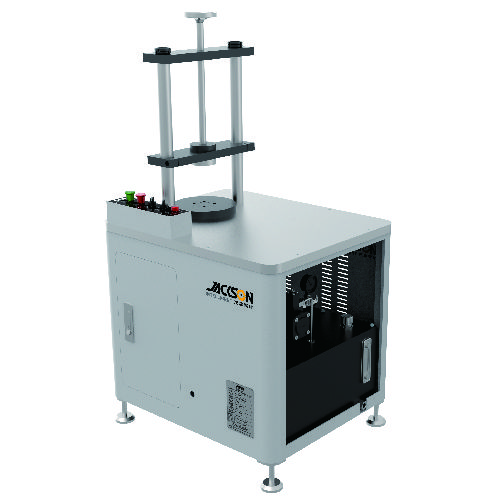

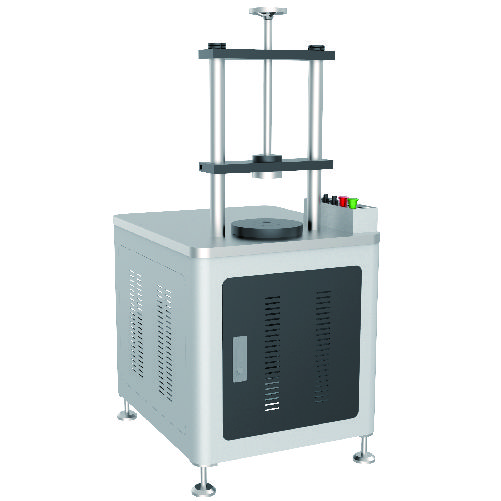

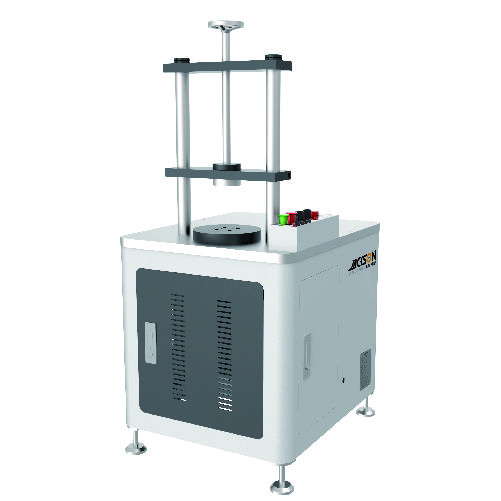

The bottom expanding/rounding machine is mainly used for the press-fitting process of the inner tank and the outer shell of the cup and pot.
It adopts chrome-plated optical axis support, which has good strength and high stability.
The clamps are simple and quick to change.
Use handwheel and lead screw to adjust the stroke size.
Advantages:
1.It used to make bottom round.
2.Properly welding can do for this machine.
3.Reduce welding defect rate, improve welding quality.

Main Technical Parameters
|
Model |
JSB-K1133 |
|
Function |
Bottom expanding, increase bottle bottom circumference |
|
technology |
Hydraulic |
|
Working diameter |
40-180mm |
|
Working height |
0-400mm |
|
Output |
3000-4000pcs/8h |
|
Voltage |
AC 380V/AC 415V |
|
Power |
1.5kw |
|
Size |
700*900*1800mm |
|
Weight |
180kg |
