Home > ROBOTS > Robotic Arm
C SERIES
C SERIES

C SERIES

Item No.: 00331
Jackson automatic manipulator instead of labor, and has a wilde industrial application, such as palletizing,depalletizing,handling,punching,and unloading in packaging,beverage,chemical,food and other fields.
$ *****
Login to Order Request Quote PDF Format
Description Specification Review
Description

Application Areas

Electronic, light industry,food and pharmaceutical industries, to achieve high-speed pick and place, sorting machine packing and other operations.

Advantages

High cost performance

Instead of human labor,it helps you reduce the investment costs effectively , and apply for all kinds of handling, press and other industrial applications.

Convenient maintain

The automatic structure is simple. Using a modular component structure and the combined type deceleration mechanism, it  is easy to maintain .When happen to the failure ,it can be quickly maintain and resume production.

High reliability

The manipulator adopts high performance core components, stable and high reliability  guarantee ,which can ensure the continuous perform production tasks for a long time

Wide Application

General performance can be widely used in various industries, such as palletizing,depalletizing,handling,punching and other. hot forging, stamping and loading industry

Flexible arrangement

 Its production connection mode can be adjusted.It can quickly realize the flexible production and the subsequent scheme change design and expand its application.




Specification

                              Main Technical Parameter

Model

 Degrees of

 freedom

Method of

 drive mode

 Specified load

 (kg)

 Maxload

 (kg)

 Repeatability

 (mm)

 Range of motion

 (mm)

 Rotation angle

 (°)

 Max acceleration

 (m/s²)

 Max speed

 (No load)(m/s²)

 Typical takt time

 Weight

 (kg)
20/305/25(mm) 30/400/30(mm)

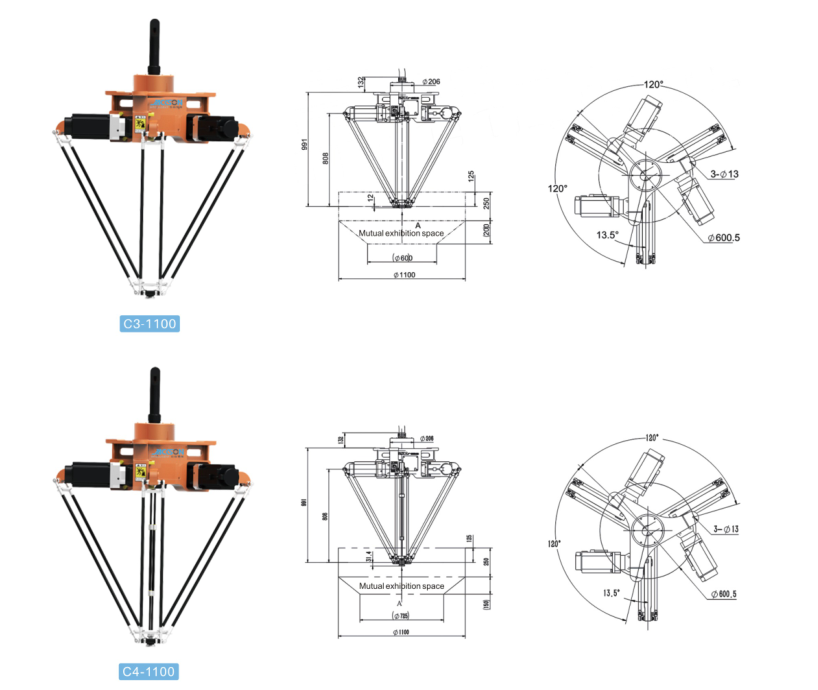

 C3-1100  3  AC Servo Drive

1

 3 ±0.5 f 1100*250 - 120 10  0.33(0.3kg)/0.38kg(1kg)   0.48(0.3kg)/0.50kg(1kg)  95
 C4-1100  4  AC Servo Drive  1 3 ±0.6 f 1100*250 ±180 120 10  0.33(0.3kg)/0.38kg(1kg)   0.48(0.3kg)/0.50kg(1kg)  110
