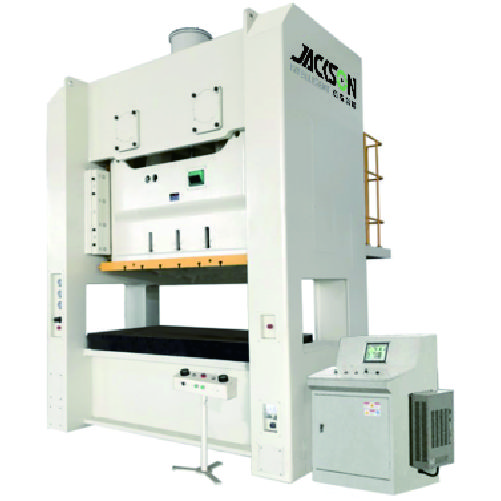

CLOSED DOUBLE CURVES SHAFT PRECISION STEEEL FRAME PUNCH

PERFORMANCE CHARACTERISTICS

◎Design of high steel frame,uses the high quality steel plate wel-ding,after eliminating the internal stress process.Improve theoverall stability of precision and reliability.

◎The machine adopts high alloy steel double axistwo wide focusfrom the connecting rod supporting optimization design.To guarantee the machine work relatively stablewith symmetri-cal balance device design.

◎Adjustment precision up to 0.1mm safe convenientandreliable.

◎The crankshaft connecting rodgearetcthe hard oxidation andgrinding processthe comprehensive performance of high andhigh degree of.

◎Using a highly sensitivereliable clutch/brake device and thetop ofthe double solenoid valve,an overload protection device,

◎To ensure the accuracy and safety of operation and to stop theslide of a press. The machine has reasonable structural design,easy to realize automation of production reduce costs, improve efficiency.

◎The design conceptadvanced lownoise,lowconsumptionen-ergy saving.

STANDARD CONFIGURATION

◎high Performance Dry Clutch&Brake

◎standard Operating System Of Yiduan

◎operation ModeSelection/off/inching safety

◎hydraulic Overload Protector

◎overrun Detector

◎dual Solenoid Valve

◎missfeed Detector

◎motorized Slide Adjustment

◎diaital Die Heiaht Indicator(unitO.1mm)

◎motorized GreasePump

◎totalCounter.6Dioits

◎perset Counter,6Digits

◎maintenanceCounter6Digits

◎life Counter,6 Digits

◎electronic Rotary Cam Switch(6 Spare Channel)

◎airEjector1/2 OneChannel

◎air Source Receptacle1/2 Two Channel

◎missfeed Detection Circuit

◎Touch-screen(previewpreloadcount)

OPTIONAL ACCESSORIES

◎high performance wet clutch & brake

◎die cushion

◎vs motor

◎safety light curtain

◎slideknock-outdevice

◎main motor reversing circuit

◎foot switch

◎safety die block with plug

◎portable2-handpush

◎inverter

◎ant-ivibrationamounts

◎quick die change system -upper die clamper

◎lower die clampe

◎rdie lifter -die arm

◎anchgrbolts&foundation plates

◎automaticfeedequipment

◎NCstraightenerfeedc/wuncoiler(3in 1)

◎NCroller feeder

◎staightener feedc/wuncoiler(2in 1)

◎staightene

PRODUCT APPLICATION

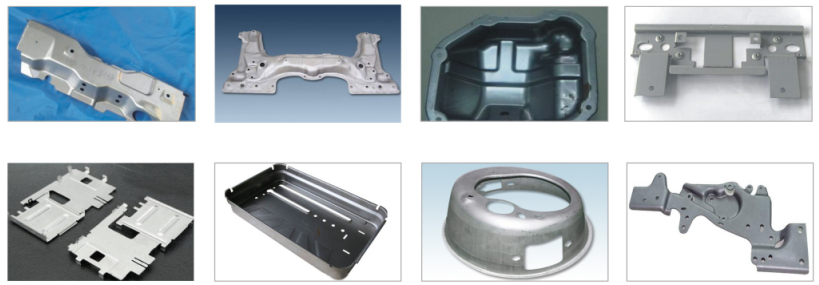

The SPE2 series presses are widely used in automobile manufacturing,household appliances, medical equipment,metal processing industries.

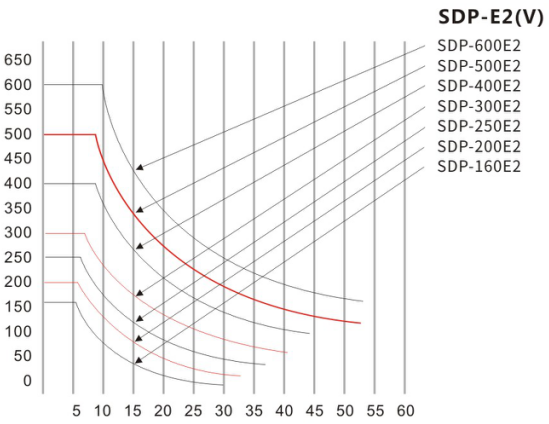

CAPACITY CURVE

The point where the V-stroke capability occurs                                                       The point where the V-stroke capability occurs

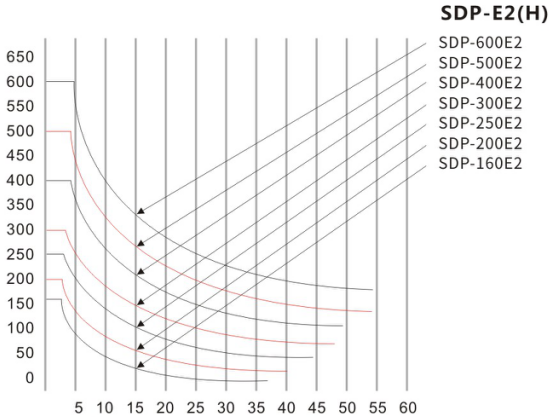

                    Stroke-Capacity Curve (H)                                                                                        Stroke-Capacity Curve (H)

Main Technical Parameter

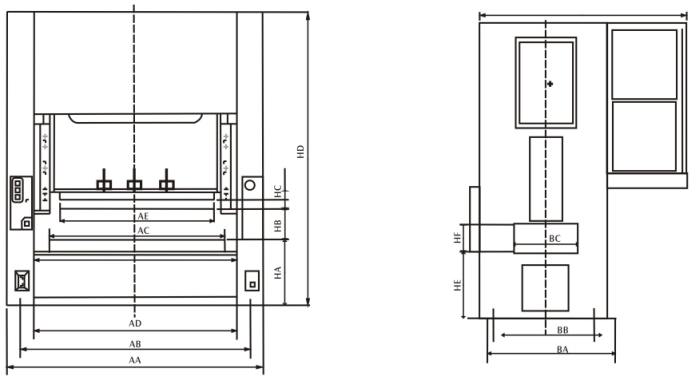

Shape Size
