Application
With the feature of easy handle,quick deployment,flexible application ad trusted safety, Jackson collaborative robot has various applications, like assembly, pick and place, screw driving, dispensing, and gluing. As long as you have demands, ECR5-1200 4axis can help you achieve in action.
Advantages
◎ Energy saving
Low standby energy consumption &Low operation of energy consumption
◎ Flexible and reliable
Equipped with a variety of position sensors, encoders, analyzer and other
◎ Safety
By the sensor safety control robot action and speed, small layout, no fence

Main Technical Parameter
| Structure style | Vertical multi-joint robot | |
| Degree of freedom | 4 axis | |
| Payload | 5 KG | |
| Max radius of activity | 1173mm | |
| Repeated positioning accuracy | ±0.06mm | |

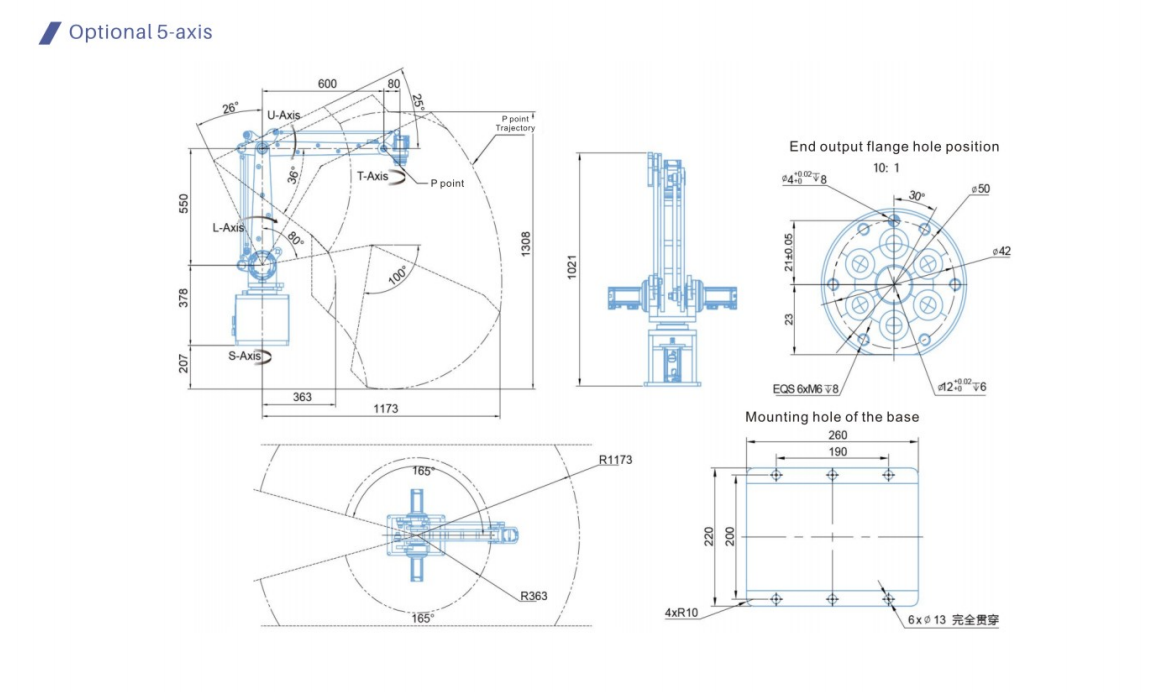

| Activity range | S axis | ±165° |
| L axis | -80°, +26° | |
| U axis | -100°, +25° |
|
| T axis | ±360° | |
| Body weight | 35KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 | |
| No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 2.45KVA | |
