Application
Jackson collaborative robot is easy to operate and is suitable for arc-welding applications in various forms,materials and industries.
Advantages
◎Suit for complex production environment even in the small space
◎The teach pendant can integrate the standard arc welding man-machine interface and welding parameter modification
interface to make the debugging simple and effcient
◎ It has excellent performance in the fields of handling,machine loading and unloading.

Main Technical Parameter
| Structure style | Vertical multi-joint robot | |
| Degree of freedom | 6axis | |
| Payload | 20 KG | |

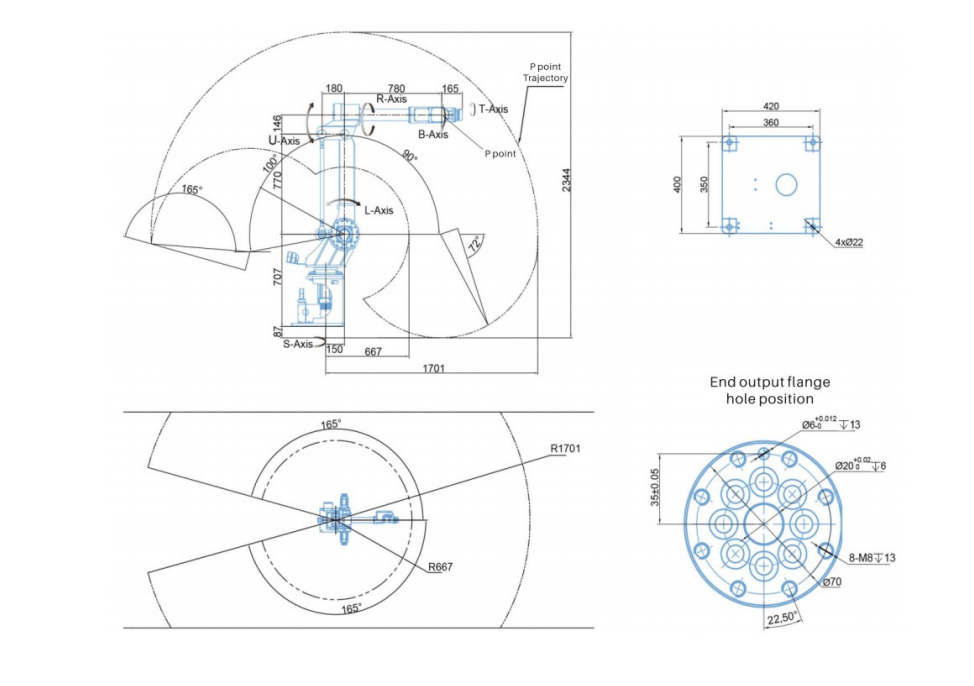

| Max radius of activity | 1701mm | |
| Repeated positioning accuracy | ±0.08mm | |
| Activity range | S axis | ±165° |
| L axis | -100°,+90° | |
| U axis | -165°,+72° | |
| R axis | ±135° | |
| B axis | ±145° | |
| T axis | ±360° | |
| Body weight | 235KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 | |
| No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 6.65KVA | |
