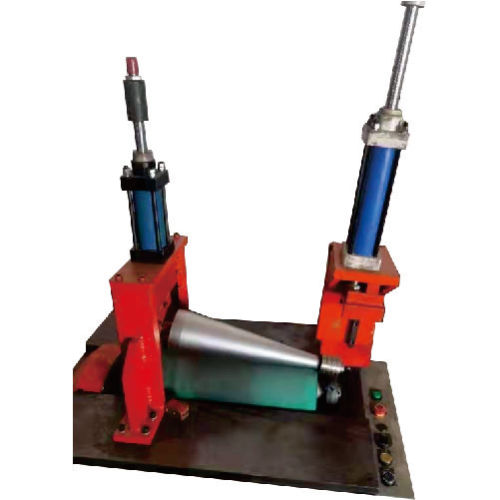

Advantages:
1. Conical drum rolling as shaping before seam welding, helps easier positioning for seam welding.
2. Better finish & faster in the coming seam welding.
3. Rolling roller & clamping lick roller protect the piece surface while cone-shaping.
4.12-13pcs individual silicone rubbers on clamping lick roller rotate passively, according to different linear speeds of different positions of conical drum.
Main Technical Parameters
Model |
JSB-CR400 |
Function |
Cone shape rolling |
Technology |
Hydraulic |
Thickness |
0.4-1.0mm |
Size of workpiece |
80-400mm*100-400mm(Dia.*H) |
Voltage |
AC 380V/AC 415V |
Power |
4.5kw |
