Application

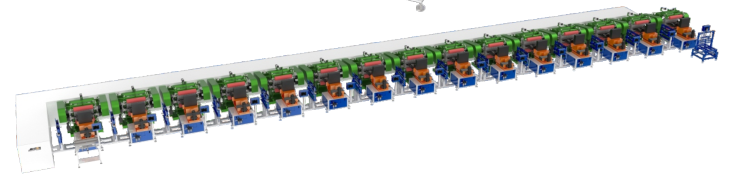

These machines are used to do curve polish in a for stainless steel spoon and fork, generally to have better quality spoon and fork, besides the flat polishing, also need 15-16 units curve polishing machines to do different parts of the polishing.
Advantages
1. Save time and labor
After the installation of the equipment, there is only one or two workers needed to operate the system. More automatic and effective.
2. Make the product bright and nice-looking.
During the polishing, it will solve the product surface defects of scratches, oxidation, roughness and so on.
3. Provide safety to workers
As it is under standard operation with the machine, workers' safety is guaranteed.

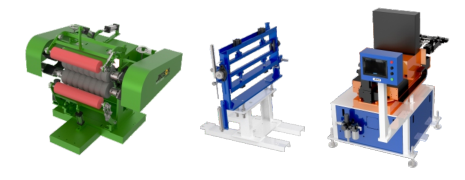

Main Technical Parameter
| Model |
Unit | ASC-AS1000 | JSC-D-x001e-1000 | JSC-D-x001e-1000 | |
| Process |
![]() |
![]() |
![]() |
||
|
Function |
|
The curved surface moves straight up and down or nods forward and backward | External spherical surface polishing | Inner sphere surface polishing | |
| Working size | mm | 680*350 | 620*300 | 620*300 | |
| Power |
Grinding wheel motor | kw | 7.5*2 | 7.5 | 5.5 |
| Open & close motor | kw | 0.4 | |||
| In & out motor | kw | 0.37 | |||
| Swing motor | kw | 0.37 | |||
| Size |
mm | 1750*1650*1650 | 1600*1560*1560 | 1600*1580*1580 | |
| Weight | kg | 1200 | 800 | 1000 | |
