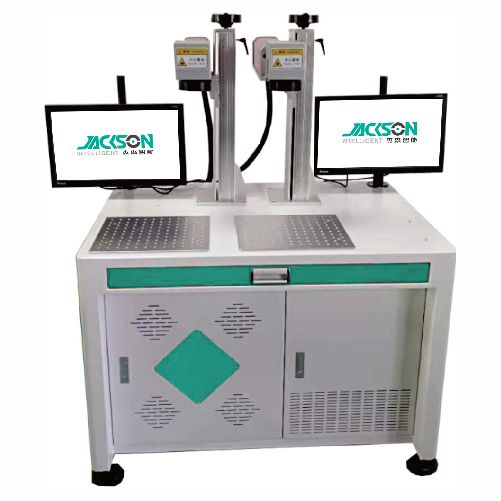

Name: DOUBLE HEADED LASER MARKING MACHINE
Brand: SHANTOU JACKSON INTELLIGENT MACHINERY CO.LTD
SKU: 00361
Availability: InStock
Rating: 5 (1 reviews)

Home

Description Main Technical Parameters Review

Description

Product Usage

The machine employs imported / domestic fiber laser and imported high-speed galvameter as its central devices. It is widely used for metal's surface marking such as stainless iron, aluminum alloy, aluminum, al-mgalloy, zinc, alloy, copper, nickel alloy, zinc alloy marking, etc.

Product Advantage

(1) Short pulse-width, air-cooling, maintenance free, high stability, good light beam quality, long using life fiber laser;

(2) Imported / domestic high-speed galvaometer, high processing precision, fast marking speed and stable performance;

(3) Convenient Operation: Convenient data processing with dedicated laser marking software interface is simple and friendly, easy operation;

(4) Available support file pormat : PLT, DXF, AI, SDT, BMP, JPG, JPEG, TGA, PEG, TIF, TIFF, etc;

(5) Support one-dimensional code and two-dimensional code marking such as Code39, EAN. PDF417, DATAMATRIX. TEC;

(6) Option function: marking - on-the-flying,rotary marking and add X/Y 2D platform;

Product Application

It is widely used for consumer electronic products, bath - sanitation, cooking utensil products, horologe shell electronic components, medical device, hardware tools, automobile parts, food and beverage, packaging, building materials, illumination jewelry and cosmetics, etc.

Main Technical Parameters

Model	JS-YLP-20W	JS-YLP-30W	JS-YLP-50W	JS-YLP-100W
Equipment type	Imported fiber laser; sdjustable pilse width		Domestic fiber laser; pulse width can not be adjusted
Laser power	20W( Optional 30W / 50 W / 100W, etc.)
Laser wavelength	1064mm
Laser frequency	1.6-1000kHz	20-200kHz	1-1000kHz	2-200kHz
Peak power stability	< 5% rms
Laser power stability	< 3% rms
Laser cooling method	Air cooling
Marking depth	≤ 0.4mm
Marking speed	≤ 12000 mm/s
Marking area	Standard marking size		100*100mm
	Optional marking size		50mm50mm-200mm200mm
Mini line width	≈ 20um
Mini character	0.2mm
Repetitive of positioning accuracy	± 0.003 mm
Ambient temperature	10-40 °C
Ambient humidity	10%-85%, non-condensing
Power consumption	220 V/ 50Hz
Power supply	600W
Weight	70KG
Software language	Chinese, English, Japanese, Korean
Font format	True Type, Single line font ( JSF ), SHX, DMF
Bar code support format	One- dimension	CODE 39, CODE 93, CODE 128, EAN stand, EAN-128
	Two- Dimension	Data Matrix, QR code, PDF 417, micro QR code
File format	BMP, JPG, PNG, TIF, GIF, TGA, DXF, AI, DST, PLT
Special custom function	Rotating marking function (marking while rotating)
	Flying marking function (marking while conveyor belt moving）
	Add X/Y axes motion platform
	Automatic loading and unloading mechanism
