Dual-Station Cladding with Stepwise Transfer

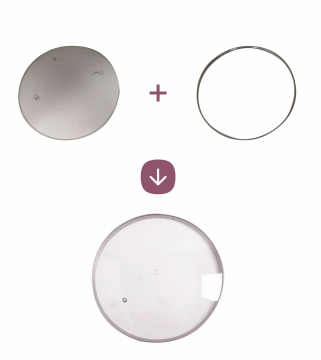

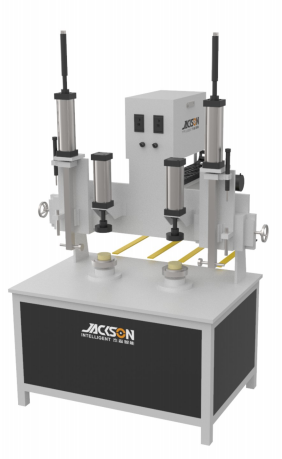

This automatic cladding machine features a dual-station configuration, enabling simultaneous processing of two workpieces. Operators manually place the angle ring and steel ring, after which the machine carries out the cladding and pressing processes through sequential mechanical and pneumatic actions. Cylindrical drives ensure stable transitions between stations, while the platform movement supports synchronized operation. Designed to accommodate narrow or standard lid sizes, the unit is adaptable for cookware and stainless steel bottle lines. Its dual-head layout increases processing volume, making it suitable for high-efficiency equipment manufacturer workflows where consistent performance and low manual intervention are required.
Edge Pressing Integration within Cladding Framework
Once cladding is completed, a built-in pressing arm lowers to shape and secure the edge against the lid’s surface. This integration reduces deformation, minimizes secondary handling, and improves edge profile uniformity. Mechanical arms assist in transferring the workpiece from the cladding to the pressing unit within the same station. This design supports continuous operation and reduces the chance of alignment errors. For production lines manufacturing stainless steel bottle closures or cookware lids, the machine’s integrated pressing function streamlines midline operations, allowing it to link smoothly into automated equipment manufacturer production stages.
Modular Alignment with Multi-Process Lines
The machine is structurally compact and integrates into modular manufacturing environments. Its automated control system allows synchronization with manipulators, conveyors, and downstream processing equipment. It can be deployed before or after forming, polishing, or trimming operations and interfaces well with systems like pipe laser cutting machine or CNC shaping tools. This compatibility makes it valuable within larger equipment manufacturer networks, where multi-stage coordination between edge cladding and surface processing—such as polishing or coating—is essential. It supports midline flexibility while maintaining output consistency and operational alignment.
Product Advantages
Simultaneous Operation Increases Production Volume
The dual-head system enables concurrent operation of cladding and pressing for two parts, increasing throughput compared to single-station machines. One station performs wrapping while the other executes pressing, creating an efficient production rhythm. In equipment manufacturer environments where volume and speed are key—such as stainless steel bottle or cookware assembly—this design reduces idle time and enables better coordination with auxiliary equipment. It supports long-shift operation with stable performance and minimal adjustments.
Consistent Wrapping Performance Across Batches
Both cladding and pressing mechanisms are controlled through pneumatic systems with fixed motion parameters. Spring-loaded fixtures ensure the lid and ring remain stable during each cycle. This level of control minimizes dimensional variation, reduces rework, and provides high repeatability across production runs. In processes connected to flat printer modules or electrolysis machine treatments, this consistency ensures each workpiece meets the required tolerances before entering visual or surface processing stages. It also facilitates easier integration with inspection or robotic handling units.
Integrated Construction Reduces Workflow Complexity
By combining cladding and pressing into a single machine, the equipment eliminates intermediate transfer and simplifies line configuration. The coordinated system reduces space usage and aligns with upstream and downstream modules without requiring separate automation paths. Its pneumatic drive system allows adjustment to suit material or lid size changes. For production systems also running pipe cutting and bevelling machine or electrolysis machine units, this all-in-one layout supports smoother transitions and lowers synchronization overhead across production modules.
Use Scenarios
Cladding for Glass Lid Lines in Kitchenware Plants
This equipment is primarily used in the middle stages of glass lid production, following ring forming and before final polishing. It automates edge wrapping and pressing, minimizing manual operation and cycle variance. Integrated into equipment manufacturer lines, it helps maintain synchronization with polishing, inspection, or packaging stations. For cookware factories handling transparent lids or tempered glass lids with metal rims, the cladding system supports efficient and accurate edge processing, which is critical for assembly or sealing in stainless steel bottle production lines.
Edge Treatment in Mixed-Lid Product Lines
Facilities manufacturing various lid sizes benefit from the machine’s dual-station design and adjustable mechanisms. It handles flat, convex, or shaped lids, providing operational flexibility with minimal fixture changes. When paired with pipe cutting machine modules or forming systems upstream, the unit ensures smooth continuation to wrapping and pressing stages. Within equipment manufacturer operations that frequently shift between product types or run small-batch orders, this machine minimizes downtime during transitions and ensures uniformity across variants.
Pre-Finishing Wrap in Surface Processing Lines
Before applying decorative finishes or surface treatments, secure edge wrapping is necessary to prevent deformation. This machine clamps and presses rings to lids, forming a firm base for subsequent flat printer work or heat-based coating. The structural integrity achieved through its integrated pressing function helps prevent defects during post-processing. In multi-step production flows featuring polishing or electrolysis machine stages, this station ensures the edge is properly sealed and dimensionally aligned, reducing failures and improving total yield.
About Us
Founded in 2011, Jackson Intelligent Machinery Co., Ltd is a professional manufacturer of automated production equipment serving the cookware, cutlery, thermal flask, and stainless steel bottle industries. The company provides integrated A–Z production line solutions, including machine design, R&D, assembly, and technical service. Its product range includes cladding machines, riveting systems, CNC machining centers, laser equipment, polishing systems, and manipulators. Jackson supports full-line development for customers worldwide, operating with teams in China and India. As a trusted equipment manufacturer, it offers CAD design, equipment debugging, and after-sales support. Jackson also holds CE certification and owns over ten technical patents, ensuring product quality, production efficiency, and compliance with international standards. Its systems are frequently integrated into lines involving electrolysis machine processing, surface treatment, or laser-based production.
FAQ
Is this machine designed for dual-station operation?
Yes. It includes two stations operating in parallel to wrap and press simultaneously.
Can it integrate with equipment manufacturer lines for glass lids?
Yes. It is compatible with full-process production lines for stainless steel bottle and kitchenware.
Is additional pressing equipment needed after cladding?
No. Pressing is part of the machine’s structure and follows wrapping automatically.
Can this machine be used with pipe cutting machine or forming systems?
Yes. It connects smoothly with upstream shaping or downstream processing modules.
Is it compatible with automated printing or finishing steps?
Yes. Its precise output supports integration with flat printer or electrolysis machine modules.
Deploy Jackson’s dual-station cladding unit to upgrade your equipment manufacturer production line now!
