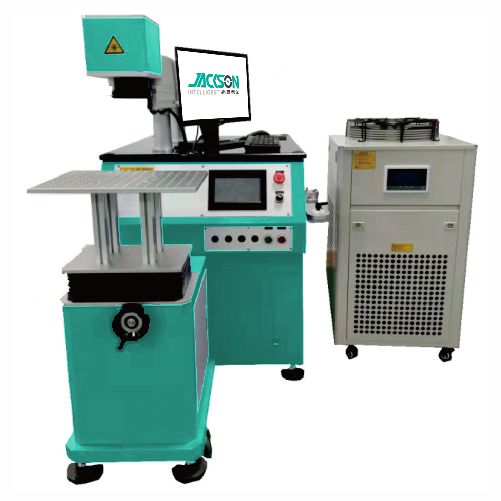

VIBRATOR LASER WELDING MACHINE

Item No.: 00353
Description Main Technical Parameters Review
Description

 Product Usage



Galvanometer scanning laser wellding machine is mainly applied on mobile phones shield and metal shell, metal shielding wire mash  inside PC, batteries parts, razor blades, electronic connectors and others electronic products.



A) 4-10 times higher than that ordinary laser spot welding.

B) Stable and convenient to operate, easy for maintenance.

C) Equipped with scanning system and professional laser welding software.

D) Input or edit the welding spots or graphics in the software directly, or edit in the auto CAD, corel draw other software.

E) Not only make the laser beam become high precision and high speed but also can choose spot welding or line welding.


Main Technical Parameters
Model JS-ZJ 200W        JS-ZJ 300W
         JS-ZJ 500 W
         JS-ZJ 600 W
Laser Power  200W 300W 500W 600W
Laser wavelength 1064mm
Welding depth  0.1-0.5mm 0.1-0.7mm
0.1-1.0mm
0.1-1.5mm
Max single pulse energy  60J 90J 110J 120J
Pulse frequency 1-100HZ
Pulse width  0.1-20ms Continuous adjustable
 Observing system CCD monitor system
Working table travel 200mm *200mm~1200mm *1200mm (optional)
 Electricity demand   AC  380V  ±10% / 50HZ
 Power  6KW
12KW 16KW 18KW
 Cooling system   Water
 Dimension  1200*700*1030mm、 1350*650*1100mm
 Environmental requirements   No interference, no vibration, keep ventilation
 Operation temperature / humidity  0-40°C 10-75%
 Working table travel 200KG 260KG 280KG 300KG
Consumables Purified water
