1. Double stations covering, fast.
2. Easy to operate, high output.

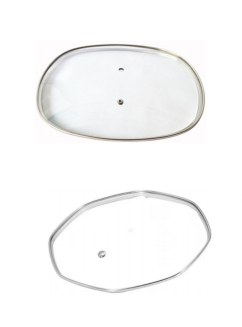

3.It can be square shaped. Olive round, hexagonal and other products.

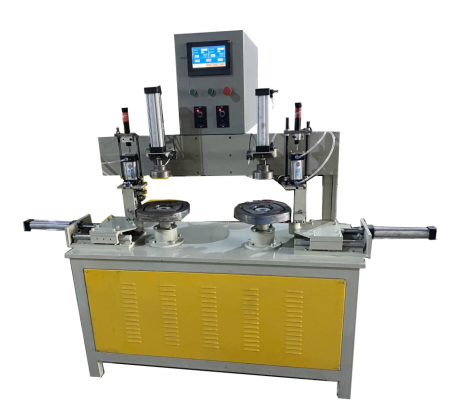

Dual Workstation Cladding for Ring Assembly
This double-station cladding machine is designed for edge wrapping in glass lid and cookware production lines. Its structure consists of two independent cladding heads with mechanical feeding and transfer mechanisms. Operators manually load the angle ring and steel ring; the system then automatically transports them into the working area. Each station performs the cladding operation simultaneously, increasing the overall efficiency. Following this, an integrated pressing arm finalizes the shaping process. This layout reduces idle time and enhances compatibility with automated equipment manufacturer lines. It is particularly suitable for lid assembly in stainless steel bottle and cookware manufacturing, where consistency and mechanical precision are required for downstream processes.
Mechanically Stabilized Cladding with Edge Pressing
The equipment incorporates spring pressure rings and limit fixtures to maintain the position of the lids during operation. Once the angle ring is aligned, the system clamps the components and performs a rolling wrap. A pressing cylinder then flattens the edges against the lid contour. These sequential steps reduce manual interference and maintain consistent dimensions across production batches. The dual-station format ensures that while one set of components is being pressed, the other can begin wrapping, optimizing time utilization. In equipment manufacturer environments where upstream and downstream equipment like pipe laser cutting machine or surface treatment units are synchronized, such layout design helps maintain rhythm and stability across the full production line.
Modular Layout for Full-Line Integration
This machine is built as a modular unit compatible with broader manufacturing setups. It can be integrated within a system that includes drilling, polishing, assembling, and sealing operations. In production chains for glass lids or stainless steel bottle accessories, the cladding machine serves as a mid-stage link between structural forming and final surface finishing. The device’s compatibility with manipulators or conveyors allows its inclusion in larger systems without custom adaptation. Within equipment manufacturer lines, this type of standardization helps simplify maintenance and improve cross-module communication, especially when paired with units like pipe cutting machine or flat printer modules further down the line.
Product Advantages
Increased Throughput with Parallel Station Design
The dual-station mechanism allows two workpieces to be processed simultaneously, improving throughput and minimizing idle time. This format is especially useful in lines handling repetitive, high-volume production such as cookware or stainless steel bottle lids. Each station operates independently but in parallel, maintaining stable cycle timing without overloading mechanical parts. For manufacturers operating full equipment manufacturer systems, this structure enables a smoother load distribution across interconnected machines. In long production lines, balanced station design minimizes bottlenecks and contributes to higher operational stability without compromising on forming precision.
Integrated Pressing Mechanism Improves Edge Uniformity
Unlike systems that require separate pressing units, this machine includes a built-in edge pressing mechanism directly after the cladding step. This ensures that the rolled angle ring is uniformly attached to the lid body with minimal deformation. The pressing motion is driven by a dedicated cylinder that follows the ring's contour. This integration reduces space requirements and enhances control over the final product dimensions. It also simplifies maintenance, as the cladding and pressing mechanisms are housed within the same framework. These design details make the machine suitable for equipment manufacturer operations handling stainless steel bottle or cookware lines requiring consistent edge treatment results.
Stable Feeding and Transfer for Shape-Sensitive Workpieces
Workpieces such as special-shaped glass lids or ring-based covers require accurate positioning during wrapping. This machine uses spring-based fixtures and pressing arms to secure parts in position during both the wrapping and pressing stages. Mechanical transfer arms guide the components between stations, reducing manual handling and potential positioning errors. This stabilizes the production outcome and ensures reproducible cladding quality across multiple cycles. For lines that combine metal pipe laser cutting machine units or pipe cutting and bevelling machine equipment upstream, the stabilized operation of this cladding machine maintains alignment throughout. Such consistency is essential for equipment manufacturer facilities aiming to standardize output across mixed component types.
Use Scenarios
Edge Cladding in Glass Lid Manufacturing
In glass lid production lines, this cladding machine serves a critical function between the steel ring forming and polishing stages. Operators manually load pre-formed rings and lids onto the platform, after which the machine handles wrapping and edge pressing. This structure is part of Jackson’s larger automated solution for kitchenware, where integration with polishing, packaging, and visual inspection modules is common. Since many cookware lids are also used as closure components for stainless steel bottle, the same production line can support diversified outputs. Within such mixed-use environments, the machine aligns easily with equipment manufacturer sequences using shared control and transfer standards.
Lid Assembly in Cookware and Flatware Systems
The machine can be embedded into cookware or flatware lines that require precise edge treatment for safety and aesthetic consistency. It works well in conjunction with upstream trimming or downstream electrolysis and polishing stations. In these workflows, consistent lid geometry is essential for seamless fitting with pots or containers. The dual-station cladding layout helps ensure that variations in ring alignment are minimized, while the pressing module prevents loose or uneven wraps. These characteristics are essential for producers using pipe cutting machine components or forming tools. The system is ideal for scalable equipment manufacturer setups focusing on long-cycle cookware production.
Supporting Multi-Line Operations in Modular Factories
For facilities managing multiple production lines for kitchenware or drinkware, this machine provides a compact and reliable cladding option. It can operate as a standalone module or within a more extensive network of automated units including robotic arms, transfer belts, and forming stations. Its dual-station format reduces changeover frequency and enables back-to-back operation without disrupting surrounding equipment. It supports equipment downstream from steel pipe cutting machine or tube laser manufacturers units by taking over the lid forming and sealing role in the assembly chain. This flexibility benefits equipment manufacturer facilities serving multiple product categories on the same floor plan.
About Us
Founded in 2011, Jackson Intelligent Machinery Co., Ltd specializes in the design and manufacture of automatic production equipment for the hardware industry. The company offers complete A–Z solutions for items such as thermal flasks, stainless steel bottles, coffee pots, cookware, cutlery, and kitchenware. Its systems cover all key processes including forming, welding, polishing, and edge processing, supporting end-to-end automation in both standard and customized lines. Jackson's capabilities include in-house research and development, mechanical and software design, as well as assembly and inspection, enabling it to deliver integrated equipment tailored to client requirements.
The company’s offerings include automatic riveting, cladding, polishing, CNC machining centers, and smart manipulators. These are often deployed within broader equipment manufacturer ecosystems supporting high-volume, precision-based production. Jackson’s product lines also integrate equipment such as electrolysis machine systems, laser cutters, and edge treatment stations for cookware and flatware. With CE certification and a portfolio of 10+ patents—including 2 invention patents—the company emphasizes technical innovation and durable construction standards.
Jackson serves customers worldwide, with engineering teams based in China and India, and provides localized support, on-site debugging, and line optimization. Its full-system planning services include CAD and 3D simulation for smart upgrades and process integration, enabling manufacturers to build modular, automated workshops for long-term industrial growth.
FAQ
Does the machine include pressing after wrapping?
Yes. The cladding machine integrates a pressing mechanism that completes edge sealing after wrapping the angle ring.
How many cladding heads does the equipment include?
The system features two independent cladding stations, enabling dual-lid operation for higher throughput in equipment manufacturer environments.
Can this machine handle shaped glass lids for stainless steel bottle accessories?
Yes. It is suitable for special-shaped lids, including those used in stainless steel bottle production lines, where wrapping and pressing must be precise.
Is this machine part of Jackson's full-line solutions?
Yes. Jackson includes this cladding unit within its A–Z lines for kitchenware and flatware manufacturing supported by full equipment manufacturer design.
Does the system require separate pressing modules?
No. The pressing cylinder is built into the machine, allowing it to complete wrapping and edge sealing without external stations.
Enhance your cookware and lid lines—add Jackson’s dual cladding machine to your equipment manufacturer system today!
