Application:
Advantages:

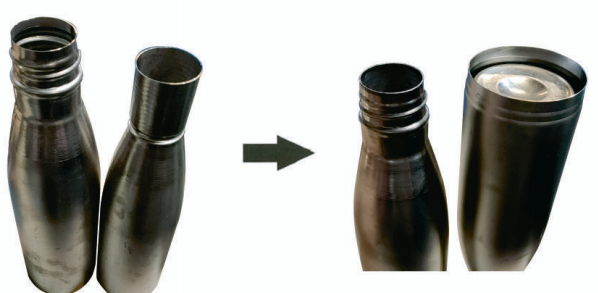

1.Bottle pressing and welding,2process finished in 1 machine.
2.High productioncapacity:2pcsfnishedin1machine at same time
3.Easyoperation and setting.
4.Less effort and high gain capacity
5.Manpower saving.

Main Technical Parameters
|

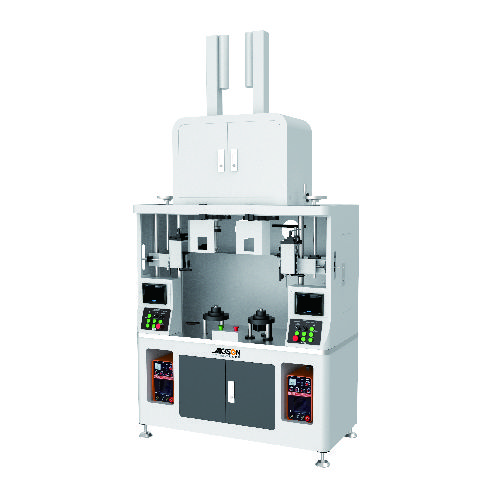

Model |
JSB-M1235 |
|
Function |
Double walls straight mouth edges circular welding |
|
Technology |
Argon welding, servo system, PLC control |
|
Working length |
0-400mm |
|
Working pipe diameter |
40-180mm |
|
speed |
3000-4000pcs/8h |
|
Voltage |
AC 380V/AC 415V |
|
Power |
4.1 KW |
| Air pressure |
0.6Mpa |
|
Size |
1500*700*2895mm |
|
Weight |
930kg |
