Application:

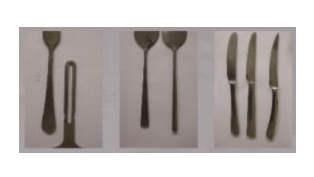

This machine is used for flatware spoon/forrk head cup outer paart polishing.
Advantages:
1. The mechanical operation replaces the labor operation, saving the labor cost.
2. Higher the efficiency of thee process, increasing the production every day.
Main Technical Parameters
| Function |
Unit | Single side straight grinding | Single shaft grinder | Single side grinding | |
| Working size |
mm | 600*350 | 620*300 | 6600*350 | |
| Working time |
s | 5-180 | |||
| Grinding wheel speed |
r/min | 1800 | |||
| Power | Grinding wheel motor | kw | 7.5 | 4 | 7.5/11kw(optional) |
| Open & close motor | kw | 0.4 | / | ||
| In & out motor | kw | 0.37 | / | ||
| Swing motor | kw | 0.37 | 0.3 | ||
| Size |
mm | 1750*1650*1650 | 1600*1560*1750 | 1350*1000*1300 | |
| Weight |
kg | 900 | 8800 | 500 | |
