Product Usage
Stainless Steel, carboon steel, alloy steel, silicon steel, steel, spring steel, aluminum alloy, galvanized sheet, galvanized sheet, nickel and other metal welding. Widely used in aviation, machinery, electronics, communications, power, chemical, automobile manufacturing and other industries. It is widely used in welding of water pipe joint, varible diameter joint, tee, value, lithium battery, battery pack, electrode, stainless steel. titanium alloy, glasses buckle position, outer frame, impeller, kettle, water cup, wine pot, stainless steel bowl, sensor, diode, aluminum alloy, mobile phone battery, door handle, mixer, shelf,complex stamping, cooper, aluminum, casting.
A) Welding of automotive components(hydraulic tappet, gasoline filter, automotive exhaust sensor, solenoid value, starting motor stator);
B) Lithium - ion Battery Welding (mobile phone battery,power battery);
C) Metallurgy industry ( welding of silicon steel plate)
D) Application of military industry sensors, engine blade welding;
E) Precision spot welding and steel welding of electronic components ( continuing appliances);
F) Electrical industry ( welding of silicon steel sheet, motor rotor of air conditioner, leakage protector).

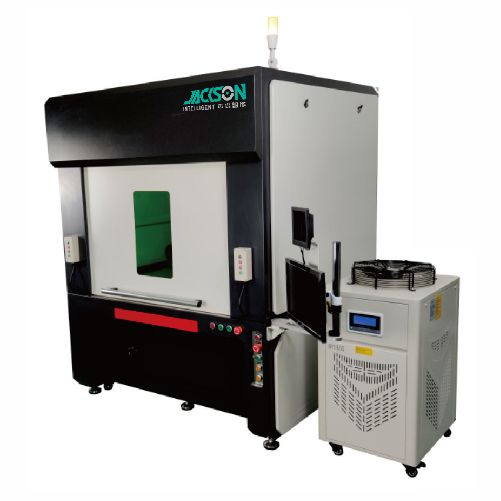

| Model | JS-CW 1000 W | JS-CW 1500 W |
JS-CW 2000 W |
JS-CW 3000 W |
| Laser Power | 1000W | 1500W | 2000W | 3000W |
| Laser wavelength | 1070 ± 5 nm |
|||
| Welding depth | 0.5-2.0mm | 0.5-2.5mm |
0.5-3.5mm |
0.5-4.5mm |
| Fiber optic | 20µm, 10m | 50µm, 10m | 100µm, 10m |
|
| Modulation frequency | 20 KHz |
|||
| Energy stability | <3% | |||
| Continuous working time | 24 hours | |||
| Welding method | Pulse, continuous | |||
| Electricity demand | AC 220V/380V/50HZ | AC 380V/ 50HZ |
||
| Power | 4.5kw |
|||
| Cooling system | Water | |||
| Dimension | 750*1100*1500mm | |||
| Environmental requirements | No interference, no vibration, keep ventilation | |||
| Operation temperature / humidity | 0-40°C 10-75% |
|||
| NNet weight | 300KG | |||
| Consumables | Purified water, Argon gas | |||
