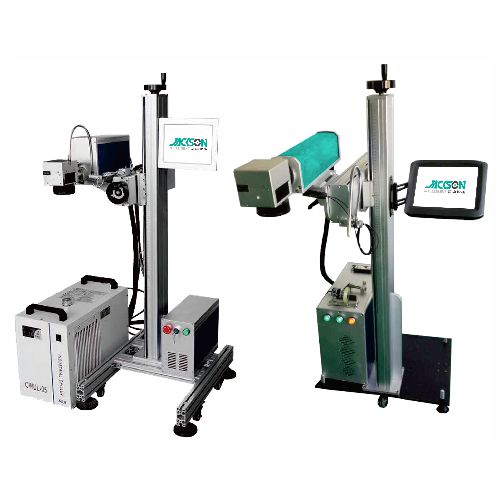

Product Usage
In view of the problems of difficult material supply, poor positioning and slow speed caused by the design and manufacture of fieture in the batch irregular marking, the line marking is solved by the use of external camera real-time shooting and the way of feature points. This system provides material at will, precise positioning, perfect marking, greatly improving the marking efficiency.
Product Advantage
(1) Conveyor belt automatic transmission, automatic blanking,can multiply the efficiency;
(2) Operation only need to put the workpiece on the conveyor belt, do not need to care about the position;
(3) The equipment automatic positioning of the workpiece, to ensure that the identification position is accurate;
(4) Stable energy, accurate control, stable processing quality;
(5) It can identify characters, bar codes, binary codes, etc;
(6) Good beam quality, fine signs and good readability;
(7) Support DXF, PLT, AL and other multi-file formates;
(8) Friendly interface, easy to use;
(9) High efficiency of electro-optical conversion, compact structure, compact shape;
(10) Optional to add a filter device, to protect the health of operators;
(11) Reserved signal interace, convenient with the existing production line into an organic whole;
(12) Designed for industrial production, long time continuous work, maintenance free and consumable longer life.
| Equipment Type | JS-PM | Laser frequency | ||
| Power of laser | 5w/10w/20w/30w/50w/100w | Marking speed | ≤1200mm/s | |
| Laser type | UV/YLP/CO2 | Etching depth | ≤1mm | |
| Wavelength of laser | 355um/1064um/9.3um/10.6um | Positional repeatability | 0.05/0.1/0.25 | |
| Beam quality | <1.5 | Power consumption | 0.8KW | |
| Code range |
30*30mm-300*300mm |
Laser cooling method |
Air cooling, water cooling | |
| Temperature |
4-40°C | |||
| Marking height | 126mm-560mm | Working environment | Relative humidity | ≤85% |
| Mini line width | 0.01mm | File-format | AI、BMP/DST/DWG/DXF/LAS/PLA | |
| Mini character | 0.01mm | Special custom function |
Rotary marking (marking the turning), frying marking (pipeline marking), adding X/Y two-dimensional working platform, automatic loading and unloading mechanism |
|
