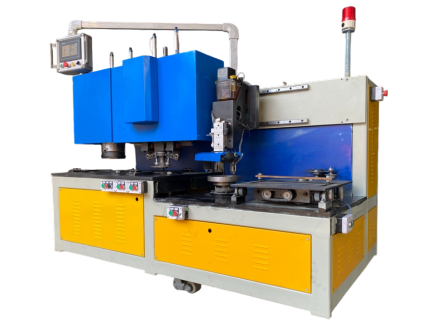

This fully automatic machine integrates multiple mechanical units including a roller conveyor, pushing cylinder, positioning module, and forming and discharging mechanisms to achieve efficient steel ring production. Each component works in coordinated sequence under the control of a PLC system to support steady production and reduce manual intervention. With functions arranged in a linear structure, raw steel materials are advanced, formed into rings, pressed, and ejected in a continuous operation. This setup suits workflows that involve equipment from tube laser cutting machine manufacturers and connects smoothly with forming and shaping operations often seen in pipe laser cutting machine processes. Its capability to align forming actions with controlled timing ensures the steel ring maintains shape accuracy throughout all stages.
Parameter‑Driven Mechanical Design
The system’s key specifications include a size of 2200×1000×1750 mm, a forming speed of 400–500 pieces per hour, support for ring diameters up to 380 mm, and a total power consumption of 6 kW. This performance profile supports medium-batch manufacturing scenarios with stable cycle rates. Voltage requirements are 380 V, and all functions are managed through a programmable logic controller that allows parameter adjustments such as timing, pressure force, and diameter range. These features make the equipment highly adaptable for integration with upstream production systems from tube laser manufacturers and other related pipe cutting and bevelling machine models. Centralized control logic contributes to process stability, enabling real-time response to changes in ring size or production rate.
Operation and Workflow Adaptability
The system enables unattended operation with minimal daily intervention once parameters are set. Ring forming, pressure application, and discharging operate in sequence without the need for manual alignment or repositioning. This enhances consistency and reduces variability during extended production runs. Operators can adjust settings via the PLC interface, streamlining shifts in product size or volume. Maintenance routines such as lubrication and piston checks are simplified due to a modular mechanical layout. With control logic that can synchronize with other automated machines, this system complements the workflows used in metal pipe laser cutting machine lines and is highly compatible with semi‑automated and fully automated ring forming applications from tube laser cutting machine manufacturers.
Product Advantages
Fully Coordinated Mechanical System
The integration of conveyor pushing, ring positioning, forming, and discharging units into a single system eliminates transitional inefficiencies between independent modules. The movement between steps is tightly managed through PLC timing to avoid overlap or mechanical interference, which improves precision in ring diameter and forming consistency. Because of its coordinated operation, the machine easily fits into automated production lines built by tube laser cutting machine manufacturers and can handle post-processing sequences after work from a laser pipe cutting machine or similar forming station. This helps maintain product dimensional accuracy while increasing throughput stability across shifts.
High Efficiency and Adaptability
A production capacity of 400–500 pieces per hour meets the requirements of many mid‑scale manufacturing lines. The adjustable parameters within the PLC allow fine-tuning of key values such as stroke, speed, and ring size. These settings can be changed without hardware modifications, enabling the machine to support a broader range of steel ring specifications. This is particularly useful when combined with pipe laser cutting machine or tube laser manufacturers equipment that delivers varied material dimensions. Adaptability across product types reduces downtime, and mechanical consistency ensures minimal defects or rejects.
Reduced Labor and Stable Output
Once programmed, the machine operates autonomously, minimizing the need for human supervision or real-time correction. Its modular structure simplifies maintenance, and all mechanical contacts and actuators are easily accessible for inspection. The reliability of the positioning unit, forming mechanism, and pressing module helps avoid common misalignment issues that can occur in manual or semi-automated setups. Manufacturers using upstream pipe cutting and bevelling machine solutions can add this machine as a downstream step, reducing labor requirements across the entire line while benefiting from its high output stability. This makes it suitable for facilities managing large orders of metal ring components or related stainless steel accessories.
Use Scenarios
Component Forming in Metalware Production
This machine serves as a core part of forming operations in plants producing cookware, pot lids, or stainless steel container rings. In such factories, metal strips or segments are first prepared—often using systems from tube laser cutting machine manufacturers—before being shaped into rings for functional or structural purposes. The machine takes the processed raw material and automatically handles ring formation and discharge, reducing handling steps and improving accuracy. Its modular structure also allows it to be positioned after a pipe laser cutting machine for streamlined workflows in lid, rim, or support structure production.
Automation Upgrade for Medium-Sized Plants
Manufacturers transitioning from manual forming to automated workflows often adopt this system to replace traditional labor-intensive ring production. The consistent forming pressure and centralized control provide improved repeatability and reduce the number of required workers per line. Facilities that already use upstream tube laser manufacturers systems can link this ring forming machine directly, leveraging its output precision and pace. Similarly, operations using pipe cutting and bevelling machine tools can integrate this equipment to shift from segmented manual steps to continuous automated production.
Industrial Applications with High Ring Demand
Industries requiring steel rings in high volumes—such as bottle manufacturers, kitchenware producers, or metal enclosure assembly lines—use this machine for its production speed and stable shaping quality. The process flow from raw strip feeding through final ring output suits batch or continuous runs. These facilities often operate in environments where upstream machines like metal pipe laser cutting machine tools or tube laser cutting machine manufacturers’ systems prepare materials to exact specifications before ring forming. The ability to maintain consistent dimensions across thousands of pieces makes this ring machine well-suited for scale operations.
About Us
Jackson Intelligent Machinery Co., Ltd was established in 2011 and has since focused on the research, development, and manufacture of automated machinery for the metal goods industry. The company offers a full range of production lines and equipment covering stainless steel bottles, cookware, sinks, vacuum flasks, and glass lid rings. Its factory is located in Shantou, where engineering, production, and inspection capabilities are housed under one roof. Jackson supports both standardized and customized solutions for hardware manufacturers worldwide. Its customer base includes clients from Europe, South America, Canada, the Middle East, and other regions. As part of the industry chain, Jackson’s products are compatible with upstream equipment commonly used by tube laser cutting machine manufacturers and downstream systems such as pipe laser cutting machine modules, enabling comprehensive integration across automated lines.
FAQ
What type of equipment does Jackson Intelligent Machinery produce?
Jackson designs and manufactures equipment for metal product production including cookware, cutlery, stainless steel bottles, and glass lid rings.
Do you offer OEM customization services?
Yes, the company provides OEM services and can customize machine parameters or designs based on customer specifications.
Where is the company located and what facilities does it include?
Jackson operates from Shantou and houses its R&D, manufacturing, and quality control functions within the same location.
How long has the company been serving the hardware equipment industry?
The company has been active in the industry since 2011, with over ten years of experience in automated equipment production.
Can your machines be integrated with upstream cutting systems?
Yes, machines are designed to work with upstream systems including those provided by tube laser cutting machine manufacturers and pipe laser cutting machine suppliers.
Contact us now to optimize your steel ring production and streamline your metal forming process!
