Application

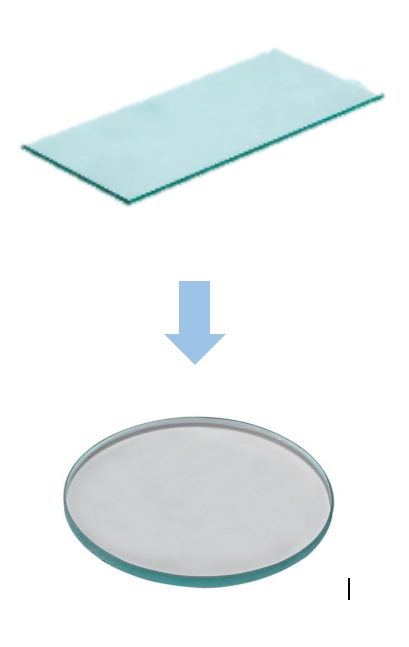

Cut the strip glass into round shape
Advantages
◎Easy operation &easy management
◎Size and shap even from beginning to the end
◎Improves the utilization rate of raw materials
◎High successful rate,almost up to 100%
◎Capacity:900-1200pcs/H

Main Technical Parameter
|
Machine specifications |
2000 X 2000X 2900 |
|
Mximum loading . |
2440X 410 |
|
Minimum loading |
1500X 1200 |
|
Suct1 on depth |
φ70 |
|
Loading depth |
φ400. |
|
Cuttins thickness |
3~7mm |
|
Loading speed |
25~ 35s/piece |
|
Cutting speed |
4-5s/piece |
|
Pomer |
3kw |
|
Working pressure |
6kg |
