Application

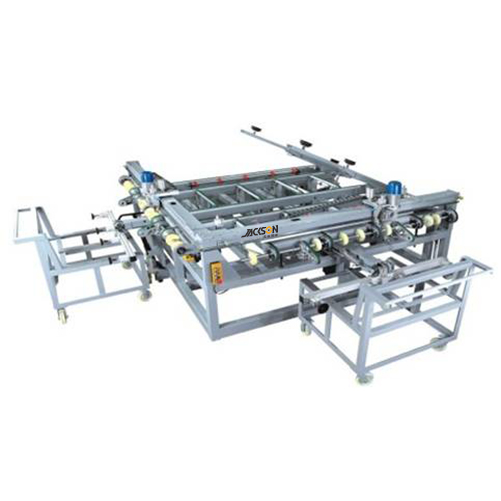

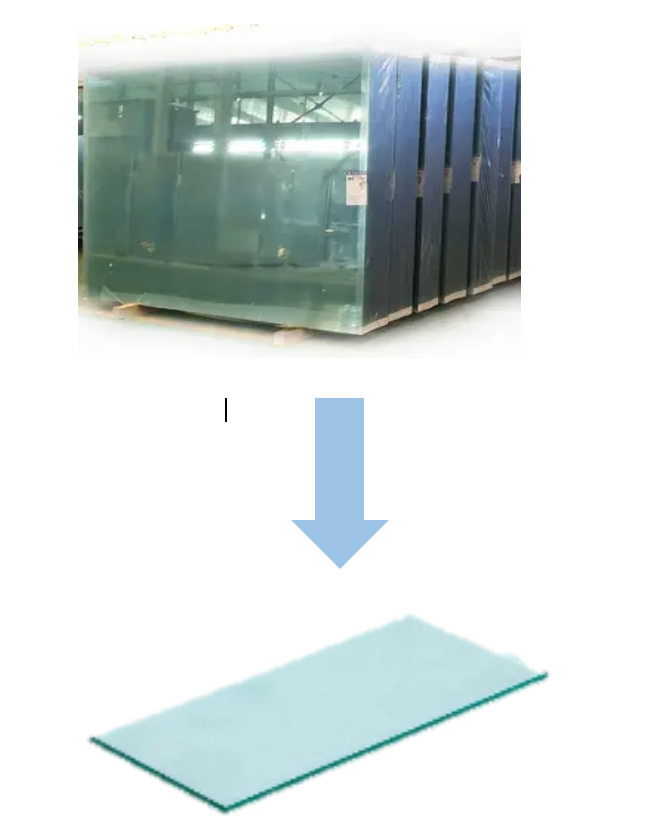

Glass Slab Cutting Machine is used for cutting large glass blocks into the smaller rectangular glass blocks.
Advantage
◎PL control system,high precision
◎One machine can supply 3 production line (6-8 pcs)
◎Easy operation &easy management
◎Size and shap even from beginning to the end

Main Technical Parameter
|
Machine specifications |
3200 X 2750X 1300 |
|
Maximum loading |
1950 X 2440X7. |
|
Minimum loading |
1500 X 2000X3 |
|
Mininal cutting |
800 |
|
Maximun cutting |
900 |
|
Cutting thickness |
3~ 7m |
|
Loading speed |
8s/pcs |
|
Cutting speed |
6-8s/pcs |
|
Power |
11kw |
|
Working pressure |
6kg |
