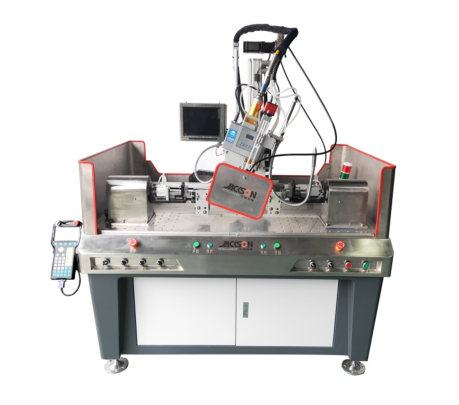

Handle Laser Spot Welding Machine

Item No.: 00418
Description Specification Review
Description

Application

Weld the semi-finished product that has been spot welded in a full circle.
Advantages
1. Multi-axis linkage, supporting up to 8 axes, realizes multi-directional welding of complex work pieces.
2. Self -developed welding control system, easy to learn, stable and reliable.
3. Intrgrated wire feeding system realizes precise wire feeding control and changes in different wire feeding angles.
4. Universal machine design, different product welding can be realized by changeing the fixture.
5. Adopt 976 pump source laser and air-cooled body design, saving energy by 10%.
Specification

Main Technical Parameters

Number of axes Support 4-8 axes
Programmatically Teaching programming, input programming
Number of stored programs 100 pcs
Welding station 2
Journey

X-axis 900, Y-axis 300, Z-axis 400

The work piece rotates ± 360°,and the laser head swings 45° left and right

Movement speed 0-2000mm/s

Repeatability

≤0.05mm
Wire feeding system Integrated wire feeding system
Laser head Double pendulum laser welding head
Applicable laser range 1-6 kw
Laser power adjustment method

Pulse, analog dual adjustment

Machine size 1400*1200*1600mm
Weight ≈ 450kg
