Application

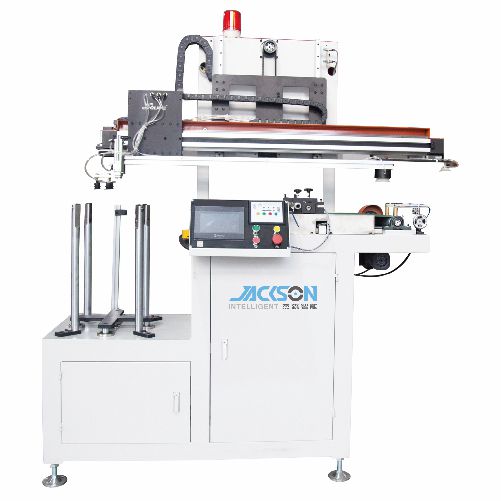

Single Table Speed Feeding Manipulator is an intelligent industrial manipulator who have the automatic function of loading and unloading materials.
Advantages
◎ The design is highly compact and available for flexible installation.
◎ Large space, fast running speed and high repeated positioning accuracy.It is applicable for various industries for loading and unloading materials.
◎ Configure the safety emergency stop board of the control system, adopt the safety relay loop and provide double circuit emergency stop,which ensures the safety
◎ This manipulator uses high soft robot special cable.
Main Technical Parameter
| Model | J-C350-JS-C600 | |
| Voltage | 380V±10%,50HZ | |
| Power | 1.5KW/H | |
| Working environment | temperature: 0-45°C humidity: 45%-65% | |
| Frontand rear travel | 1250mm | |
| Raw material itinerary | 480mm | |
| Product max size | 350-600mm | |
| Product min size | 50-350mm | |
| Feeding accuracy | ±0.08mm | |
| Production takt | 400-800pcs/h | |
| Dimensions | 1820* 745*2200mm | |
| Weight | 700kg | |
| Single/double detection | Using BlackKing Kong or AstroBoyDetector | |
| Applicable Products | round. square. shaped | |
