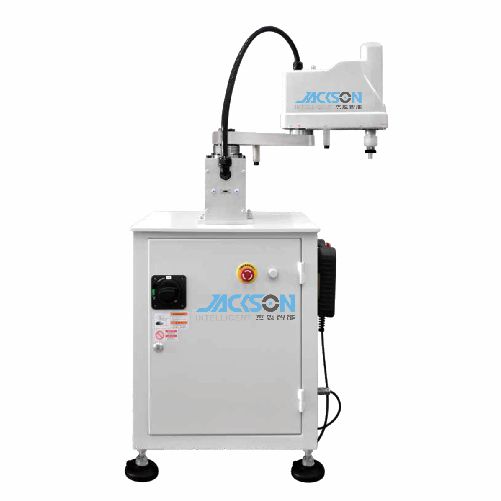

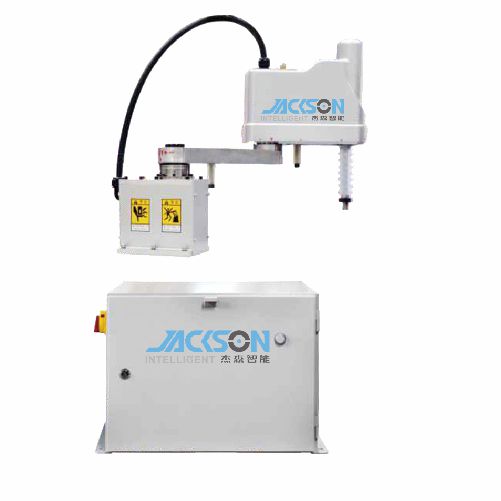

Horizontal Articulated Robot

Item No.: 00332
Jackson automatic manipulator instead of labor, and has a wilde industrial application, such as palletizing,depalletizing,handling,punching,and unloading in packaging,beverage,chemical,food and other fields.
Description Specification Review
Description

Application Areas

In the fields of electronic product industry, plastic industry, pharmaceutical industry and food industry, it can complete operations such as grasping, assembling, and gluing.

Advantages

High cost performance

Instead of human labor,it helps you reduce the investment costs effectively , and apply for all kinds of handling, press and other industrial applications.

Convenient maintain

The automatic structure is simple. Using a modular component structure and the combined type deceleration mechanism, it  is easy to maintain .When happen to the failure ,it can be quickly maintain and resume production.

High reliability

The manipulator adopts high performance core components, stable and high reliability  guarantee ,which can ensure the continuous perform production tasks for a long time

Wide Application

General performance can be widely used in various industries, such as palletizing,depalletizing,handling,punching and other. hot forging, stamping and loading industry

Flexible arrangement

 Its production connection mode can be adjusted.It can quickly realize the flexible production and the subsequent scheme change design and expand its application.




Specification

                              Main Technical Parameter

Model  Standard cycle

 Specified load

 (kg)

 Max load

 (kg)

Axisspecification Top speed  Repeatability *(mm)

 Weight

 (kg)

Xacis Yaxis Zaxis Raxis

  X、Yaxis

 (m/s)

  Zaxis

 (m/s)

  Raxis

 (°/s)

  X、Yaxis     Zaxis     Raxis
  Arm length     Rotation angle     Arm length     Rotation angle     Journey     Rotation angle
 RSP600A(B)15  0.68 2 5 350mm ±140° 250mm ±135° 150mm ±360° 5.5 1.1 588 ±0.01 ±0.01 ±0.01 160/23

Remark:

*Value when the ambient temperature is constantnoise sources(plasma).

Avoid contact with flammable, explosive and corrosive gases and liquids; do not splash water, oil, dust; keep away from electrical noise sources(plasma).
