Application
ECR 5-850 4 axis collabrative robot is specially designed for palletizing, handling and high-speed operation. Its high efficient performance makes work faster.
Advantages
◎Lightweight: Built-in driver, small electric box, saving space and easy to move.
◎Convenience: Single-phase 220V is used, and the power can be supplied by a conventional three-hole socket.
◎Save money: Compared with conventional industrial robots (30% lower in price), energy consumption is reduced by 30%.
◎Easy maintenance:The modular design of each joint is convenient for troubleshooting, and the cost of returning the whole machine to the factory for maintenance is low.

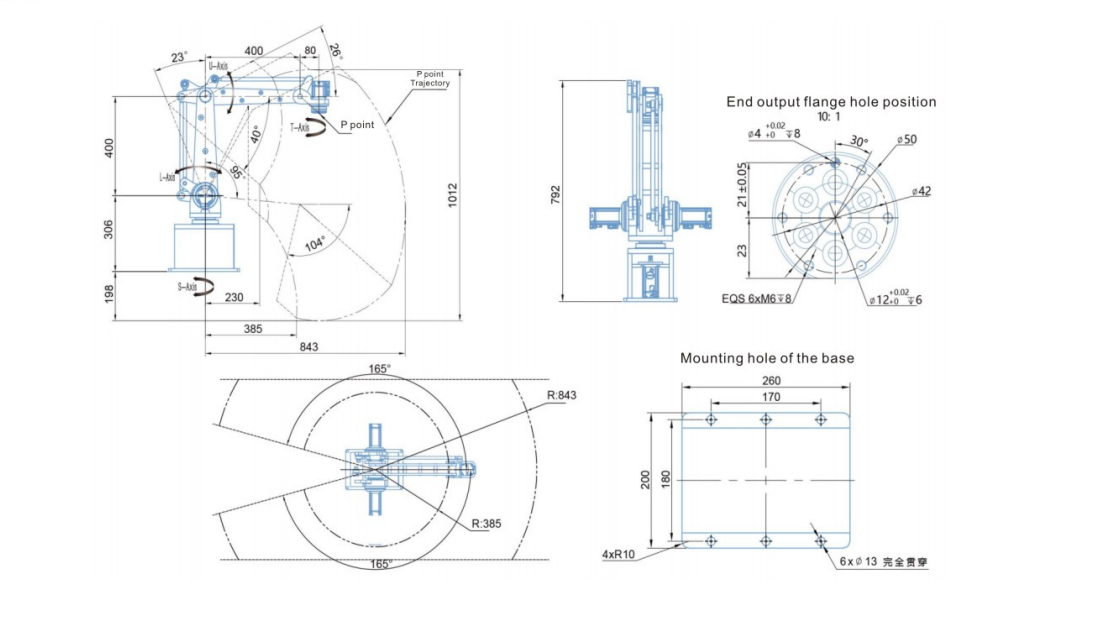

Main Technical Parameter
| Structure style | Vertical multi-joint robot | |
| Degree of freedom | 4 axis | |
| Payload | 5 KG | |
| Max radius of activity | 843mm | |
| Repeated positioning accuracy | ±0.06mm | |
| Activity range | S axis | ±165° |
| L axis | -95°, +23° | |
| U axis | -104, +26° | |
| T axis | ±360° | |
| Body weight | 25KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 | |
|
No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 1.4KVA | |
