Main Technical Parameters
|
Main technology |
LG12-100 |
LG12-120 |
|||
|
Injection unit |
Unit |
A |
B |
A |
B |
|
Screw diameter |
mm |
36 |
38 |
38 |
40 |
|
Shot size (theoretical) |
cm³ |
143 |
180 |
210 |
228 |
|
Injection weight |
g |
128 |
162 |
188 |
205 |
|
Injection pressure |
Mpa |
183 |
164 |
176 |
160 |
|
Injection rate |
g/s |
90 |
98 |
95 |
100 |
|
Screw L/D ratio |
L/D |
21.6 |
20.5 |
22.8 |
21.7 |
|
Screw speed |
r.p.m |
190 |
|||
|
Nozzle diameter |
Srmm |
10 |
|||
|
Clamping unit |
|||||
|
Clamping tonnage |
KN |
1000 |
1200 |
||
|
Toggle stroke |
mm |
320 |
350 |
||
|
Mould thickness |
mm |
150-400 |
150-420 |
||
|
Space between tie-bars |
mm |
385*350 |
410*375 |
||
|
Ejector stroke |
mm |
125 |
135 |
||
|
Ejector tonnage |
KN |
50 |
|||
|
Ejector number |
Piece |
5 |
|||
|
Hole diameter |
mm |
100 |
|||
|
Others |
|||||
|
Heater power |
KW |
8.2 |
9.9 |
||
|
Max. pump pressure |
Mpa |
16 |
16 |
||
|
Servo motor power |
KW |
13 |
18 |
||
|
Valve size |
mm |
10 |
|||
|
Machine dimension |
m |
4.3*1.3*1.65 |
|||
|
Machine weight |
t |
3.4 |
3.9 |
||
|
Oil tank capacity |
L |
160 |
200 |
||
|

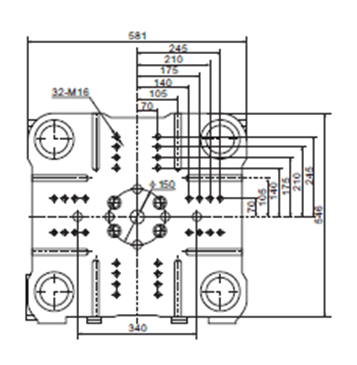

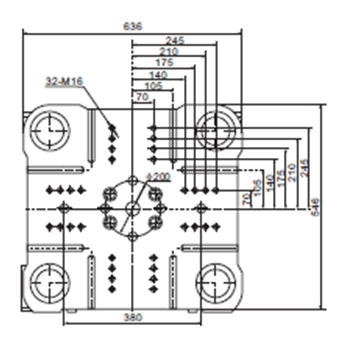

Platen dimensions (facing) |
|
|
|||
