PERFORMANCE CHARACTERISTICS

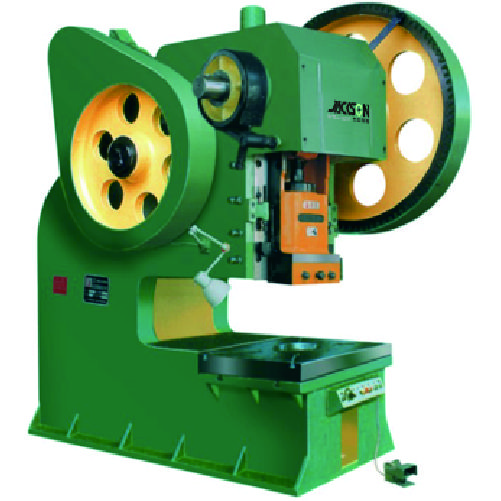

The throat depth of thi s series of pressing machine is double compared with that oft he common pressing machines of same of same metric pressure e. So it belongs to the kind of deep-throat pressing machines. This s series pressing machine is suit ablefor these technologies of o Irilling in the material, losing materials. Bending and light exte ension etc. It is widely applied to such vocations as electric ir nplements, meter switch and auto etc.
Main Technical Parameter
| Model | Specifcation | J21S-16A | J21S-40A | J21S-80A | J21S-125A | J21S-165A | |
| Normal capacity | KN | 160 | 400 | 800 | 1250 | 1650 | |
| Stroke of nominal pressure | mm | 3.7 | 7 | 7 | 10 | 12 | |
| Strok of slide | mm | 55 | 100 | 100 | 130 | 130 | |
| Stroke per minute | s.p.m | 120 | 50 | 40 | 38 | 35 | |
| Max.shut height | mm | 180 | 190 | 300 | 380 | 400 | |
| Shut height adiustment | mm | 45 | 75 | 65 | 100 | 100 | |
| Frame gap | mm | 500 | 600 | 700 | 900 | 900 | |
| Bed dimension | Right-left | mm | 450 | 610 | 860 | 1080 | 1070 |
| Front-back | mm | 300 | 400 | 570 | 710 | 740 | |
| Depth | mm | 40 | 60 | 80 | 100 | 140 | |
| Bolster hole size | Right-left | mm | / | / | 310 | 380 | / |
| Front-back | mm | / | / | 450 | 560 | / | |
| Diameter | mm | 180 | 250 | 400 | 500 | 180 | |
| Slide bottom size | Right-left | mm | 200 | 242 | 400 | 430 | 480 |
| Front-back | mm | 180 | 220 | 360 | 370 | 400 | |
| Shank hole size | Diameter | mm | 40 | 50 | 50 | 60 | 70 |
| Depth | mm | 60 | 70 | 70 | 75 | 100 | |
| Distance begween columns | mm | 310 | 440 | 460 | 610 | 610 | |
| Electromtor | Type | Y100L-6 | Y112M-4 | Y132M-4 | Y160M-4 | Y180M-4 | |
| Power | kw | 1.5 | 4 | 7.5 | 11 | 18.5 | |
| Revolve speed | r/min | 940 | 1440 | 1440 | 1460 | 1460 | |
| Overal dimensions | Right-left | mm | 834 | 1140 | 1502 | 1740 | 1820 |
| Front-back | mm | 1480 | 1920 | 2215 | 2800 | 3250 | |
| Height | mm | 1820 | 1750 | 2610 | 2900 | 3245 | |
| Weight | Ton | 1360 | 2980 | 6000 | 10000 | 20800 | |
