J23 SERIES SERIES OPEN BACK INCLINABLE PRESS J23:6.3-125

Item No.: 00210
J23 SERIES
SERIES OPEN BACK INCLINABLE PRESS
J23:6.3-125
Description Review
Description

PERFORMANCE CHARACTERISTICS

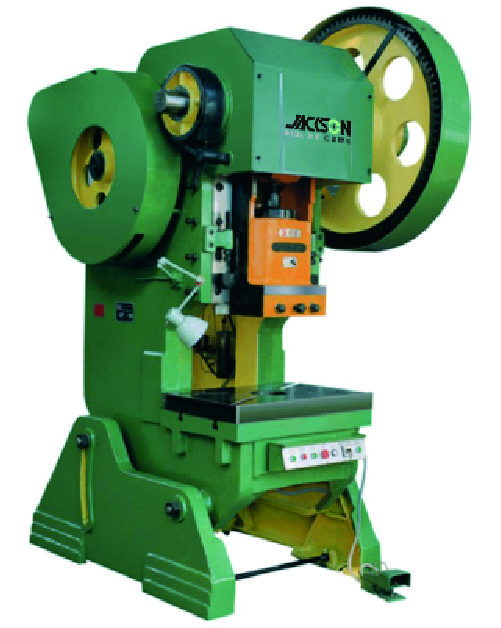

the press of this series is an universal one whose frame can beinclined at a certain angle within inclinable range to be convebient for dischanging products and sctaping, this machine is widely used for piercing, blanking, cutting, bending, shallow-drawing, forming and other procedures.



PRODUCT APPLICATION

The press produced by JACKSON are widely applicable for the indutries such as the authmobile manufacture, electrical home apparatus production, motor and electrical appliance, instrument & medical instruments, hardware etc.



Main Technical Parameter

Model Specifcation JB23-6.3 J23-10 J23-16 J23-20 JD23-25 JD23-35 JF23-40A JB23-40 JB23-63 JC23-80 J23-100 J23-125
Normal capacity KN 63 100 160 200 250 350 400 400 630 800 1000 1250
Stroke of nominal pressure mm 2 3.2 3.7 3.7 4.8 7 7 7 8 10
Strok of slide mm 35 45 55 55 65 100 100 120 120 130
Stroke per minute s.p.m 170 145 122 122 65 50 50 40 38
Max.shut height mm 120 145 180 200 210 190 210 260 300 380
Shut height adiustment mm 30 35 45 45 55 75 75 80 100
Frame gap mm 110 130 160 160 200 210 250 310 380
Bed dimension Right-left mm 310 370 450 450 560 610 700 860 1080
Front-back mm 200 240 300 300 370 400 460 570 710
Depth mm 30 35 40 40 50 60 70 80 100
Mesoporous direct mm 60 80 100 100 120 150 150 180 250
Bolster hole size Right-left mm 160 200 240 240 290 300 360 450 560
Front-back mm 100 130 160 160 200 150 230 310 380
Diameter mm 140 170 210 210 260 200 270 400 500
Slide bottom size Right-left mm 140 170 200 200 250 242 300 400 430
Front-back mm 120 150 180 180 220 220 260 360 370
Shank hole size Diameter mm 30 30 40 40 40 50 50 50 60
Depth mm 55 55 60 60 60 70 70 70 75
Distance begween columns mm 150 180 220 220 270 300 240 340 420 530
Gradient ℃ 25 25 20 20 15 15 20 20 20
Electromtor Type Y90S-6 Y90L-6 Y100L-6 Y100L-6 Y110L1-4 Y112M-4 Y132S-4 Y132M-4 Y160M-4
Power kw 0.75 1.1 1.5 1.5 2.2 4 5.5 7.5 11
Revolve speed r/min 940 940 940 940 1440 1440 1440 1440 1460
Overal dimensions Right-left mm 550 713 834 834 984 1140 1290 1490 1735
Front-back mm 780 895 1150 1150 1330 1550 1660 1942 2470
Height mm 1504 1653 1910 1930 2132 2280 2470 2852 3310
Weight Ton 350 600 1120 1220 1800 245 2600 3200 5450 5650 10100 10200
