Manipulator 4 Axis

Name: Manipulator 4 Axis
Brand: SHANTOU JACKSON INTELLIGENT MACHINERY CO.LTD
SKU: 00399
Availability: InStock
Rating: 5 (1 reviews)

Home > VACUUM FLASK LINE > Manipulator

Description Review

Description

Main technical parameters

Model		JSB-R1423
Structure style		Vertical multi-joint robot
Degree of freedom		4 axis
Payload		8kg
Max redius of activity		1433mm
Repeated positioning accuracy		±0.08mm

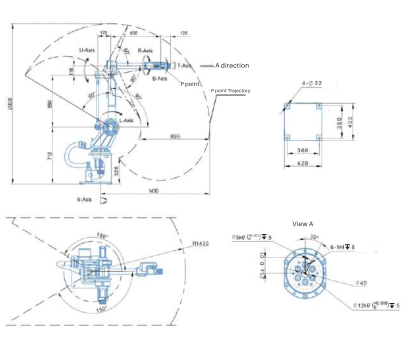

Activity range	S axis	± 170°
	L axis	+90°， -40°
	U axis	+68°， -90°
	T axis	±360°
Environmental conditions	Temperature	0-45°
	Humidity	20-80%RH(No condensation)
	Vibration	Below 4.9m/s2
	No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas
Power	3.8 kw
Weight	180kg

FAQ

What is the maximum payload and reach of the Manipulator 4 Axis?

Our Manipulator 4 Axis supports a payload of up to 8 kg and a reach of approximately 1,433 mm. This combination balances strength and extended coverage, making it ideal for tasks on the vacuum bottle manufacturing machine and similar production lines requiring precise, repeatable handling.

Can the Manipulator 4 Axis be customized to fit specific production needs?

While our standard model JSB-R1423 features fixed axis ranges and reach, we cooperate closely with clients to integrate the robot into turnkey automation solutions. For specialized requirements in your vacuum flask production line, please consult our technical team for tailored integration options.

Do you provide installation services and what warranty accompanies the robot?

We offer professional installation services with a one-year warranty effective from the installation date. Our team ensures the Manipulator 4 Axis operates reliably within your production environment, whether for a water bottle production line or other industrial applications.

How is the Manipulator 4 Axis suited for compact production cells?

Designed with a compact footprint and four-axis multi-joint motion, the manipulator performs complex tasks within limited space. It integrates smoothly with CAD/3D planning to support automated workflows on your vacuum flask production line and increases throughput while reducing labor costs.
