Application
The manufacturing robot can replace heavy labor and the production mechanization and automation can be realized.It improve production efficiency. Even operating in a harmful environment, it plays a role to ensure the personal safety
Advantages
◎4~6 axis version can be customized
◎ Optional fully imported configuration
◎ Larger activity radius can be customized
◎Tough version VS imported second-tier brands -30% increase in running speed (30% price reduction)

Main Technical Parameter
| Structure style | Vertical multi-joint robot | |
| Degree of freedom | Standard 4axis | |
| Payload | 500KG | |
| Max radius of activity | 3500mm | |
| Repeated positioning accuracy | ±1.5mm | |

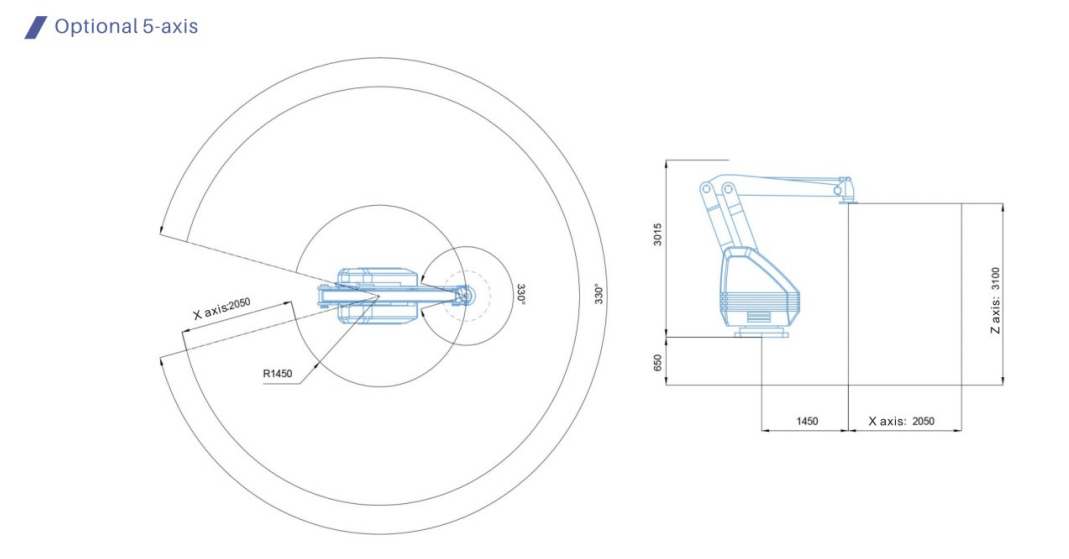

| Activity range | S axis | ±330° |
| Z axis |
3100mm |
|
| X axis | 2050mm | |
| T axis | 330° | |
| Body weight | 1850KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 |
|
| No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 11.00KVA | |
