Application
Jackson mechanical arm is a complex system with high precision, multiple input and output, and highly non-linear system. Because of its unique operational flexibility, it has been widely used in industrial assembly, safety and explosion-proof and other fields.
Advantages
◎ Less signal lines,long-distance communication
◎ Good expansion performance, strong anti-interference ability
◎ High repeated positioning accuracy
◎ You can control multiple axes at the same time
◎ Simple equipment maintenance

Main Technical Parameter
| Structure style | Horizontal articulated robot | |
| Degree of freedom | Standard 4axis | |
| Payload | 80KG/130KG | |

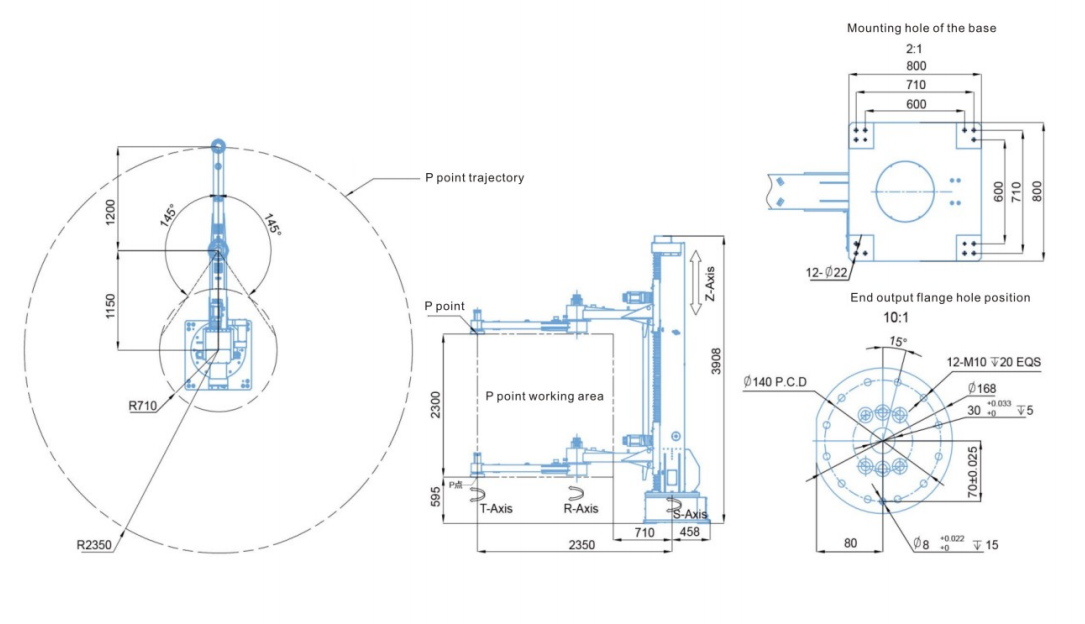

| Max radius of activity | 2350mm | |
| Repeated positioning accuracy | ±0.5mm | |
| Activity range | S axis | ±180° |
| Z axis |
2300mm |
|
| X axis | ±145° | |
| T axis | ±360° | |
| Body weight | 850KG/920KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 |
|
| No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 6.75KVA/9.70KVA | |
