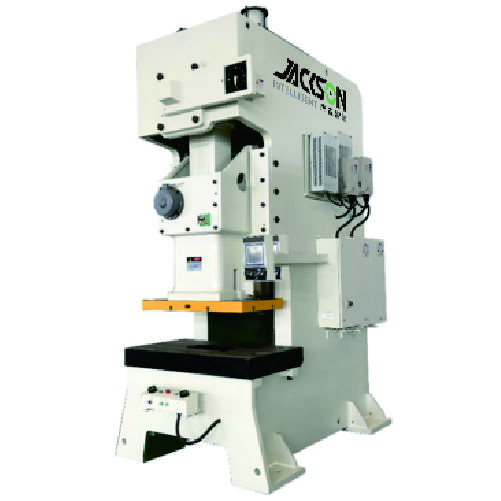

OPEN SINGLE SJAFT HIGH PRECISION STEEL FRAME PUNCH

PERFORMANCE CHARACTERISTICS

◎High rigidity:1.High rigidity and high precision frame,use welding steelsheet with hot-treatment, eliminated the internal stress ofthepress machine.2.The structuralparts have proportional loading and balanced rigidity.

◎Balanced center ofgravity:1.The transmission center and the integral centerofhis machine approach same onecan guarantee the precision and reliabilityfor press machine.2.This machine uses two-supporting sliding board balancerto guarantee the machine running smoothly and evenly

◎Safe and reliable operation:High sensitive clutch/braking device added international-level twin-body electromagnetic valve and over-loading protection device can guarantee the sliding boards running and stop with high precision and safe performance..

◎Adjusting system of sliding boardsIn high speed operation the adjustable precision is 0.1 mm, so safer and quicker in production.

◎High precision with high stability: Thefriction areas of crankshaft géar, gear shaft etc. are hardening hot-treated, thengrinding processed, so having high wearesisting an balancing performance with stable functions.

◎Automatic processing with force saving: Can equipped with any automatic transmission eauipment for automatic production, reduce cost, promoteefficiency.

◎Environmentprotection:Advanced design idealow noisesave energy.

BASIC CONFIGURATION

◎Air clutch brake

◎Hydraulic Over-load Protector

◎Manual drivr Lubrication Svstem

◎Inverter

◎SlideAdjust Device(SDP-60P below)

◎Slide Adjust Device(SDP-80P or more)

◎Die HEIGH Indicator(SDP-60Pbelow)

◎Die HELGH Indicator(SDP-80P or more)

◎Balance Device

◎Rotary Cam Switch

◎Crank Angle Indicator

◎Electric Stroke Counter

◎Air source Recepatacle

◎Against Over-run Safety Device

◎Maintenance Tool Box

◎Operation Manual

◎Touch-screen(preview,preloadcount)

OPTIONAL ACCESSORIES

◎Hydraulic clutch brake

◎Electrical Automatic Lubrication System

◎Pneumatic Die Cusion Device

◎Foot Switch (Die LifterClamp And Die Arm shift mdode)

◎Quick Die Change System

◎Slide Knock-out Device

◎Misfeed Detection Consent

◎Power Supply

◎Anti Vibration Press Mount

◎Photo-electronic Safety Device

◎Feeder(Airmechanical NCand so on)

◎UncoilerLeveler

◎MechanismHand

◎Die ROOM light

PRODUCT APPLICATION

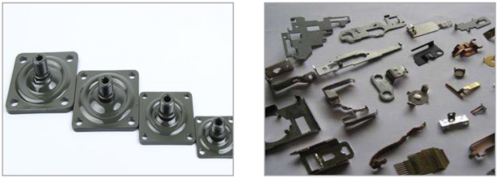

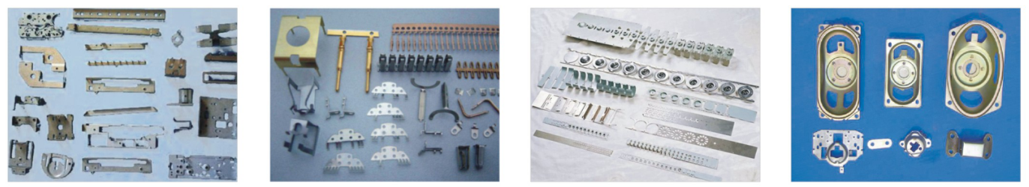

The company production of SDP-P series presses are widely used in automobile manufacturing, household appliances manufacturing, electric motor manufacturing,  instrumentation, medical equipment, hardware etc..

CAPACITY CURVE

The point where the V-stroke capability occurs                                               The point where the V-stroke capability occurs

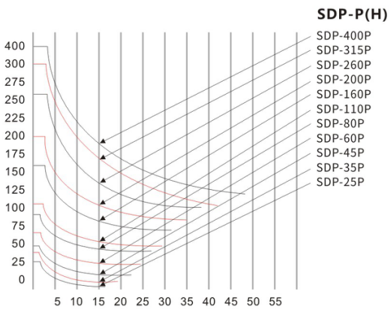

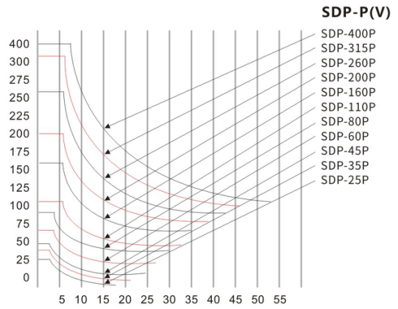

          Stroke-Capacity Curve (H)                                                                                Stroke-Capacity Curve (H)

MAIN TECHNICAL PARAMETERS

SHAPE SIZE
