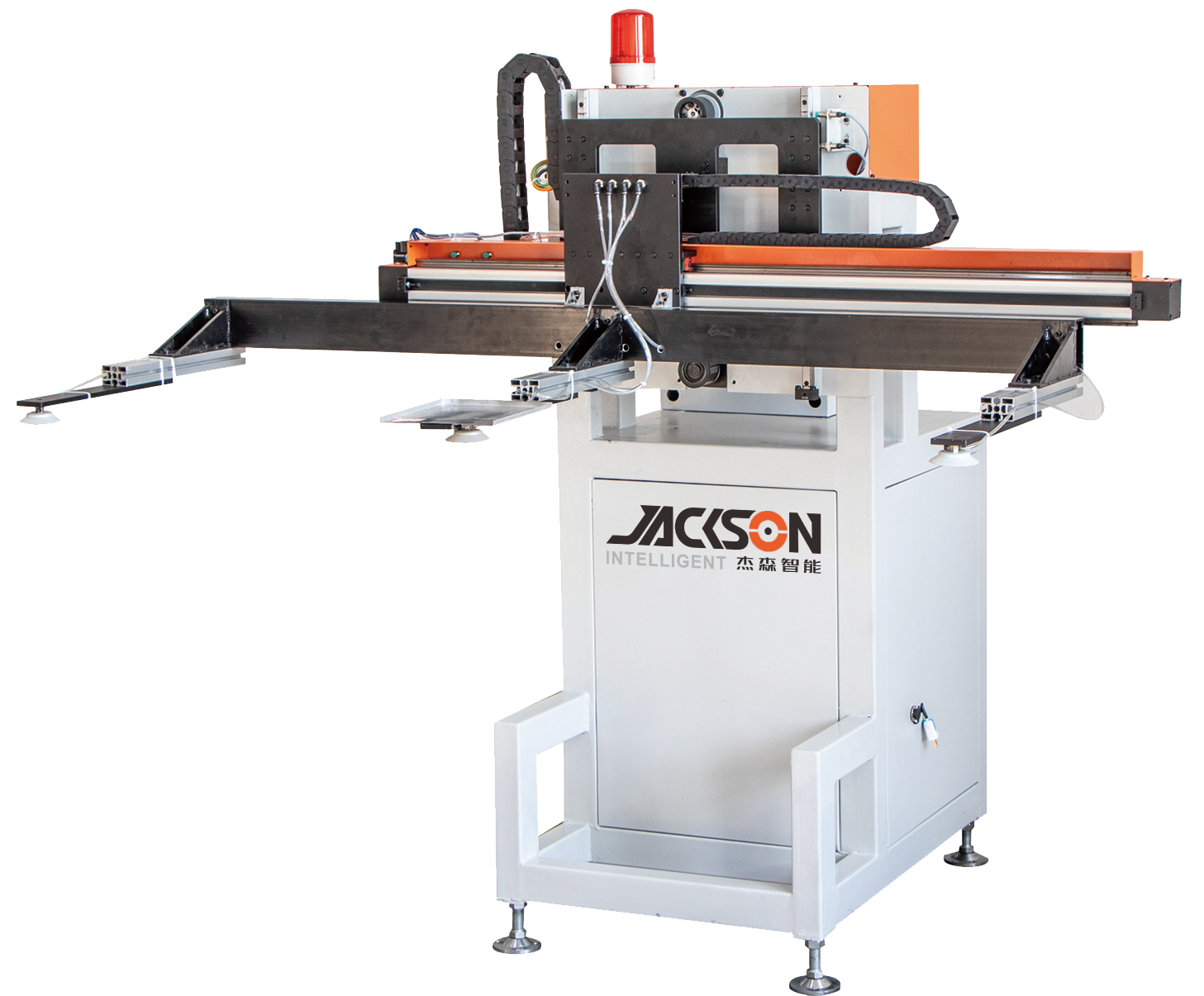

Triple Stations Parallel Manipulator

Item No.: JSD-350-JS-D900
This parallel manipulator with triple stations  is  used for the suctioned metal disc for the drawing  senction .It improve the production seeped.
Description Specification Review
Description

Application

This parallel manipulator is used for the suctioned metal disc for the drawing senction.

Advantages

Triple Stations to improve the working speed

Each actuator  move within its own degree of freedom, as for a serial robot

Computer-controlled serial chains  for easy control and operation


Specification

Main Technical Parameter

Model

JS-D350-JS-D900

Voltage

380V±10%, 50Hz

Power

1.5KW/H

Working environment

Temperature:0-45℃ Humidity:45%-65%

Front and rear travel

1250mm

Product max size

350-900mm

Product min size

50-350mm

Feeding accuracy

±0.08mm

Production takt

260-400pcs/h

Dimensions

2765*760*2100mm

Weight

580kgs

Single/double detection

Using Black King Kong or Astro Boy Detector

Applicable Products

Round、Square、Shaped
