Positioner

Item No.: 00334
Jackson automatic manipulator instead of labor, and has a wilde industrial application, such as palletizing,depalletizing,handling,punching,and unloading in packaging,beverage,chemical,food and other fields.
Description Features Review
Description

 Model   Method of drive mode

 Max load

 (kg)

 Repeatability

 *(mm)

 Range of motion

 (°)

 Rated speed   Rated torque

 Weight

 (kg)

 Tilt axis  Rotary axis   Tilt axis   Rotary axis   Tilt axis   Rotary axis

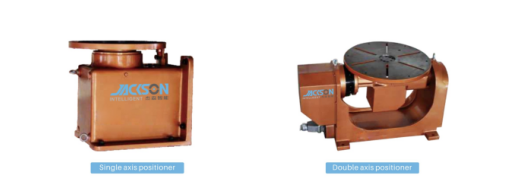

 HBS150-1   AC Servo Drive   200   ± 0.15   ± 135  ± 370  125  124   330   144  200

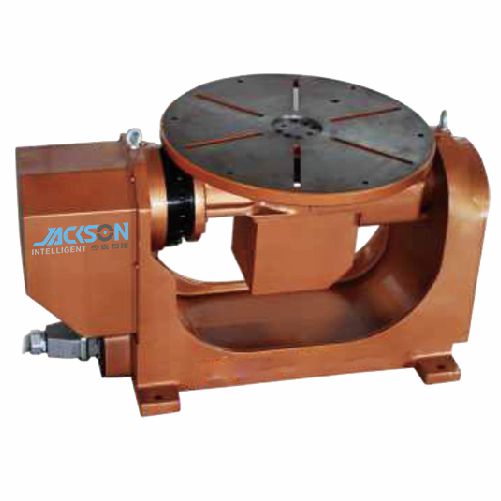

 HBD250- 1  AC Servo Drive   300   ± 0.10    /  ± 370  /  124  /  244  105



 Rated load

 (kg)

 Rated torque

 Standard rollover radius

 (mm)

 Maxflip angle

 (°)

  Rated filp speed

 (R/Min)

  Repeatability

 (mm)

 Displacement framesize

 (mm)

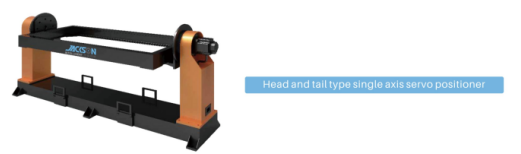

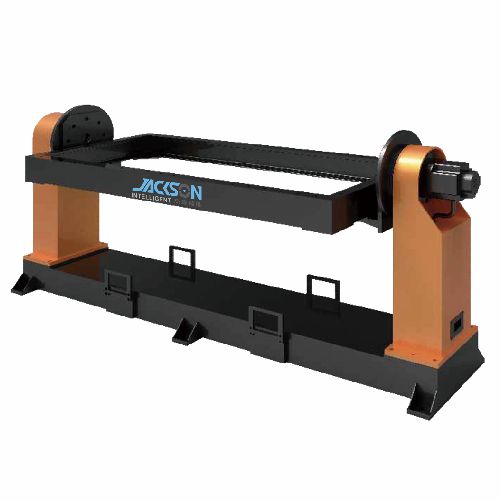

 500  700   700  ± 360   15  ± 0.1  2000*80*130
 1000  1000  700   ± 360  15  ± 0.1  2500*800*130

 Positioner size and shape

 (mm)

 Spindle turntable

 (mm)

 Shaft center height

 (mm)

 Powersupplyconditions

 Weight

 (kg)

2750*520*1100   f 400  900  7-axis/8-axisrobot cabinetcontrol*   600
3250*550*1100  f 400  900   7-axis/8-axisrobot cabinetcontrol*   600
Features

Adopt self-developed reducer and servo motor control, can rotate all kinds of welding seams of welding workpiece to the best position, avoid vertical welding and overhead welding, and further improve welding quality and production efficiency. The robot control system can not only control the movement of the robot body, but also automatically control the positioner to issue welding start instructions, automatically control and adjust the welding parameters (voltage, curren), and auyomatically detect whether the arc is successful or not. sinngle-axis positioners can also be used for automated loading and unloading.
