Application

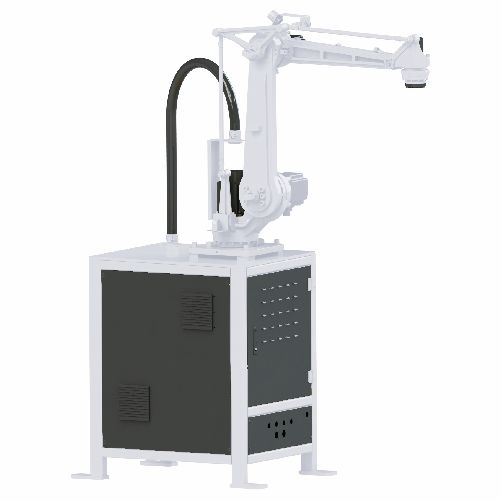

Jackson punching manipulator can be used in punching, stretching, molding and loading processing.Punching manipulator can realize punching ,stacking, handling, palletizing and other functions.It greatly saves labor costs.
Advantages
◎ The main rotating shaft adopts the mechanical high precision reducer. It has high accuracy,long life and easy control.
◎ Automatic punching manipulator covers a small space and can be arbitrarily move and put.

Main Technical Parameter
| Structure style | Horizontal articulated robot | |
| Degree of freedom | Standard 4axis | |
| Payload | 12KG | |

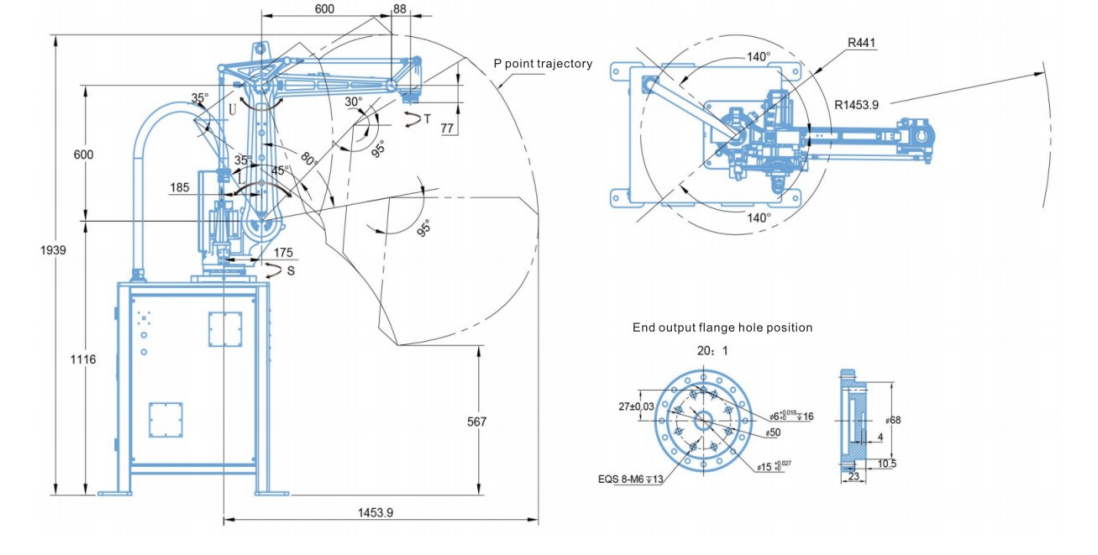

| Max radius of activity | 1454mm | |
| Repeated positioning accuracy | ±0.15mm | |
| Activity range | S axis | ±140° |
| Z axis | -35° +80° | |
| X axis | -95° +35° | |
| T axis | ±360° | |
| Body weight | 220KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 | |
| No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 3.0KVA | |
| Actual punchng beat | ≥12~15times/min | |
| The actual punching beats abov are based on the premise that the punching beats ≤ 1.5s/time | ||
