Application

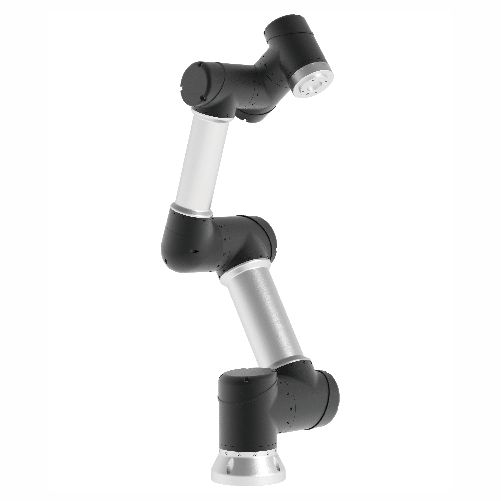

Robotic manipulator QR10-1180 is a light robot with a payload of 10kg and can adapt to a variety of different application.It can be widely used in metal and mechanical processing, the production of auto parts, electronic etc.
Advantages
◎Compared with traditional robots, it can save about 50% electricity,
◎Light weight, safe and reliable
◎Easy to learn and use, safe production

Main Technical Parameter
| Structure style | Verticalmulti-joint robot | |
| Degree of freedom | 6 axis | |
| Payload | 10 KG | |

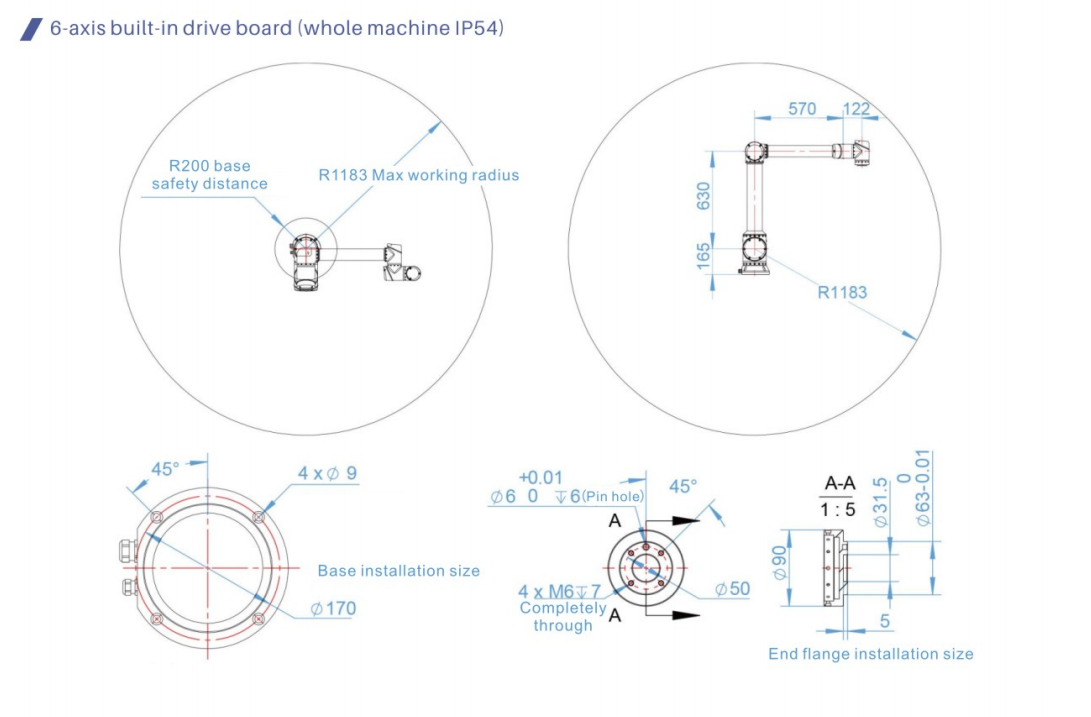

| Max radius of activity | 1183 mm | |
| Repeated positioning accuracy | ±0.05mm | |
| Activity range | S axis | ±180° |
| L axis | ±180° | |
| U axis | ±180° | |
| R axis | ±180° | |
| B axis | ±180° | |
| T axis | ±360° | |
| Body weight | 30KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 |
|
| No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 2.4KVA | |
