Application

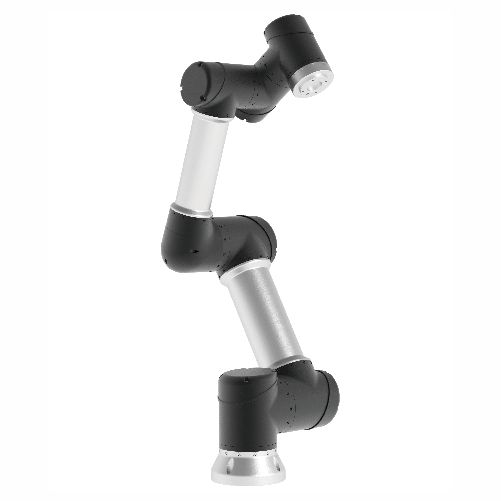

Robotic manipulator QR5-717 6 axis is high-precision mechanical arm, effectively improve the production environment, reduce manufacturing costs and improve production efficiency
Advantages
◎High speed, High repeted positioning accuracy, Maximum production efficiency
◎Maximum load 5KGS, Max radius of activity 717mm
◎Compact structure and suitable for narrow working space

Main Technical Parameter
| Structure style | Verticalmulti-joint robot | |
| Degree of freedom | 6 axis | |
| Payload | 5 KG | |

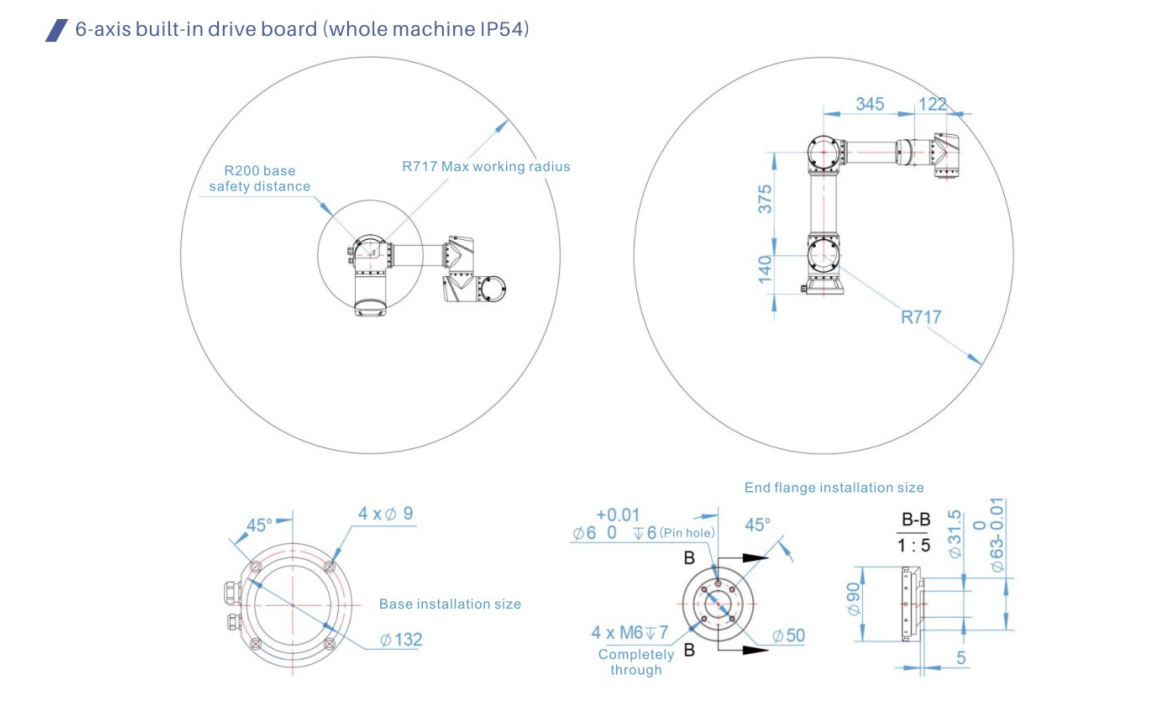

| Max radius of activity | 717 mm | |
| Repeated positioning accuracy | ±0.05mm | |
| Activity range | S axis | ±180° |
| L axis | ±180° | |
| U axis | ±180° | |
| R axis | ±180° | |
| B axis | ±180° | |
| T axis | ±360° | |
| Body weight | 20KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 |
|
| No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 1.0KVA | |
