SDP-C SERIES OPEN SINGLE SHAFT HIGH PRECISION STEEL FRAME PUNCH

PERFORMANCE CHARACTERISTICS

SDP-C (Semi-closed single shaft high precision steel framepunch) gandforming in the fields of electronic, household electric appliance, fur-niture, communication tools and vehicles (automobile, mot orcycles,bikes) and Hardware etc.

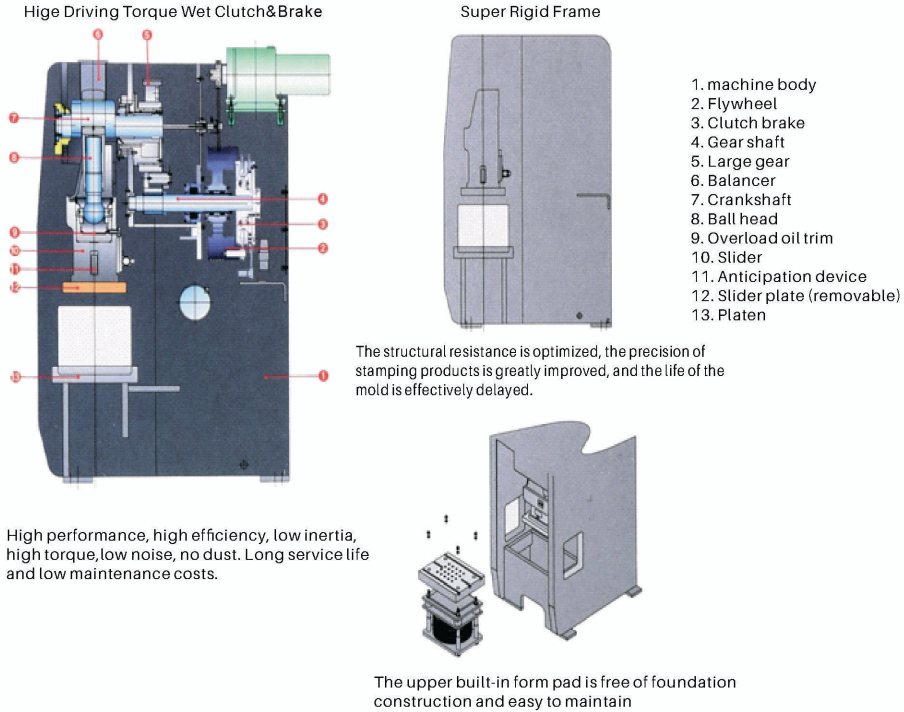

◎High rigidity:1.High rigidity and high precision frameuse welding steelsheet with hot-treatment, eliminated the internal stress of the press machine.2.The structural parts have proportionall loading and balanced rigidity.

◎Balanced center of gravity:

1. The transmission center and theintegralcenterofthis machine approach same one can guarantee the precision andreliability for pressmachine.
2. This machine uses two-supporting sliding Iboard balancer to guarantee the machine running smoothly and evenly.

◎Safe and reliable operation:High sensitive clutch/braking deviceaddedinternational-leve twin-body electromagnetic valve and over-loadingprotection device can guarantee the sliding boards running and stop withhigh precision and safe performance.

◎Adjusting system of sliding boards:In high speed operationtheadjustableprecision is 0.11 mm, so safer and quicker in production.

High precision with high stability:The friction areas ofcrankshaft geargear shaft etc.are hardeninghot-treated, then grinding processed so lhaving high we are sisting and balancing performance with stable functions.Automatic processing withforce saving:Can equipped with any automatictransmission, equipment for automatic production, reduce cost promoteefficiency.

◎Environment protection:Advanced design idealownoisesave energy.

◎It is of the high stability:As it adopts thesemi-enclosed structureitguarantees the nice stabilityin stamping.There will not beCtype slotbecause oflong-time stamping which will badly influence the mould andthe stamping accuracy.

BASIC CONFIGURATION

◎Air clutch brake

◎Hydraulic Over-load Protector

◎Manual drivr Lubrication System

◎Inverter

◎Slide Adjust Device

◎Die HELGH Indicator

◎Balance Device

◎Rotary Cam Switch

◎Crank Angle Indicator

◎Electric Stroke Counter

◎Air source Recepatacle

◎Against Over-run Safety Device

◎MaintenanceTool Box

◎Operation Manual

◎Touch-screen(preview, preload, count)

OPTIONAL ACCESSORIES

◎Hydraulic clutch brake

◎Pneumatic Die Cusion Device

◎Foot Switch

◎Quick Die Change System

◎Slide Knock-out Device

◎Misfeed Detection Consent

◎Power Supply

◎Anti Vibration Press Mount

◎Photo-electronic Safety Device

◎Feeder (Airmechanical NC and soon)

◎UncoilerLeveler

◎Mechanism Hand

◎Die ROOM light

◎Left (right)feeding device

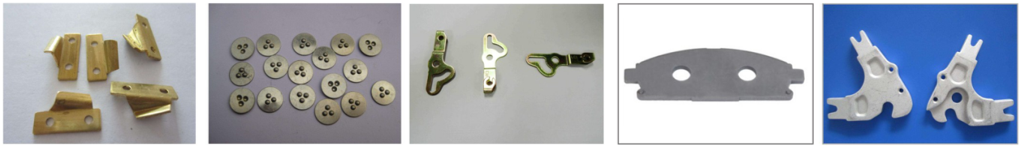

PRODUCT APPLICATION

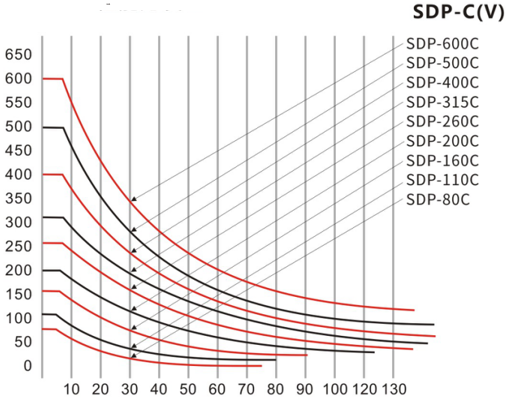

CAPACITY CURVE

        The point where the V-stroke capability occurs                                     The point where the V-stroke capability occurs

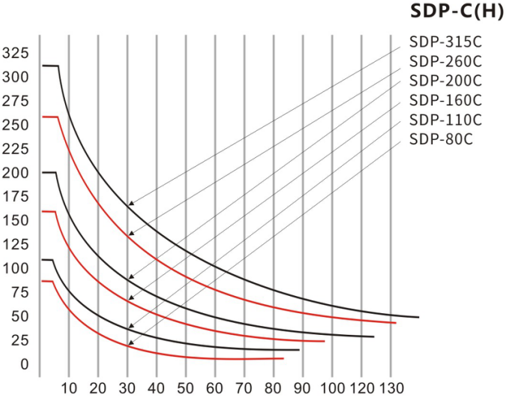

                           Stroke-Capacity Curve (H)                                                                     Stroke-Capacity Curve (H)

Main Technical Parameter
