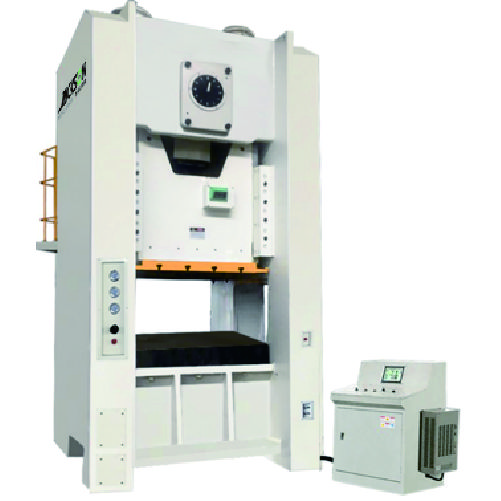

SDP-F SERIES CLOSED SINGLE SHAFT PRECISION STEEL FRAME PUNCH
SDP-F SERIES CLOSED SINGLE SHAFT PRECISION STEEL FRAME PUNCH

SDP-F SERIES CLOSED SINGLE SHAFT PRECISION STEEL FRAME PUNCH

Item No.: 00207
SDP-F SERIES
CLOSED SINGLE SHAFT PRECISION STEEL FRAME PUNCH
$ *****
Login to Order Request Quote PDF Format
Description Specifitcation Review
Description

PERFORMANCE CHARACTERISTICS

◎The advance technical optimized structure ofmachine

◎The machine body is welded high quality steel sheet and treared byTension eliminateon

◎The key parts are treated by hard chrome plated/nitrogenAdoptedwell know ncontroller/ driving unit/electromagnetism clutch/Equi-pmentsbearing etc.

◎International technology class for press machinemeasures mache-nine Specifiacation

◎High quality&high response multi-function processor High memo-ry/ progra mwith specialized design

◎Shift dtiving with high integration multishaft/spreading automaticequipnents

◎LCD man-machine interface/ high frequency responsecontrol/Con- nection terminalofinternationalwebsite&USB



BASIC CONFIGURATION

Overload protector

Motorized slide adjusting device

Digital dieheightindicator(unit:O.1mm)

Couter balancer

Rotary Cam Switch

CrankAngleIndicator

Re-circulation Lubrication Device

Electromagnetic Counter

Over Run Preoiector

PLC Controller

T-type Operation Stand

Air Source Receptacle.

IndeoebceElecttricControlCabinet

Service Tools and Tools Ki

Touch screen(preview,preloadcount)



OPTIONAL ACCESSORIES

Die Cushion

Slide knockout decive

Die Light

Main Motor Reversing Cirvuit

Photo Electri Safety Device

Safety Block With Plug

Load Momitor

Receptacle for Misfeed DetectingDevice

Anchor BoltsPlate&FundationPlates

SafetyGuard&Ladder

PowerReceptcle

Quick Die Change Device

Specifitcation

Main Technical Parameter

Item Specifcation SDP-110F SDP-160F SDP-200F SDP-260F SDP-315F SDP-400F SDP-500F SDP-600F
Model V H V H V H V H V H V H V V
Capacity ton 110 160 200 260 300 400 500 600
Rated tonnage point mm 6 3 6 3 6 3 7 3.5 7 3.5 9 4.5 10 13
Stroke mm 180 80 200 90 200 100 250 150 250 170 300 200 250 250
Speed changing s.p.m 30-60 60-90 20-50 40-70 20-50 50-70 20-40 40-50 20-40 35-50 15-25 20-35 20-30 15-20
Stable speed s.p.m 50 35 35 30 30 20 20 20
Die height mm 360 410 460 510 460 510 500 550 500 540 550 600 550 550
Slide adjustment mm 80 100 110 120 120 150 120 120
Slide area mm 900*550*70 950*650*80 1000*700*90 1100*800*100 1100*800*100 1400*900*100 1500*900*130 1500*1000*130
Bolster area mm 1100*600*110 1100*750*140 1200*800*170 1300*900*200 1300*900*200 1500*1000*200 1600*1000*220 1600*1100*250
Slide opening mm 500*350 600*400 600*400 700*500 750*600 800*600 900*750 900*750
Main motor kw.p 11*4 15*4 18.5*4 22*4 30*4 37*4 45*4 55*4
Slide adjusting moter kw.p 0.4*4 0.75*4 0.75*4 1.5*4 1.5*4 2.2*4 3*4 3*4
Air precision kg/cm² 6 6 6 6 6 6 6 6
