Application

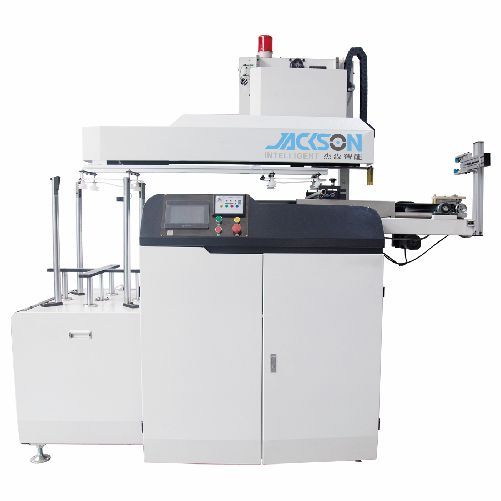

Single Table High Speed Feeding Manipulator provides stable and reliable motion control power, with zero clearance ball wire rod, linear guide rail, high rigidity and lightweight aluminum alloy , steel workbench, coupling, fast photoelectric switch and so on to provide a cost-effective motion control solution
Advantages
◎Single Table High Speed Feeding Manipulator has the feature of high repeated positioning accuracy, light weight,small equipment space, and long life.
◎Our digital drive makes the equipment performance better, faster, smoother, higher accuracy, perfect and effective to solve the heating, vibration and noise problems.
Main Technical Parameter
| Model | JS-AA350-JS-A600 | |
| Voltage | 380V±10%,50HZ | |
| Power | 1.5KW/H | |
| Working environment | temperature: 0-45°C humidity: 45%-65% | |
| Frontand rear travel | 1250mm | |
| Raw material itinerary | 480mm | |
| Product max size | 350-600mm | |
| Product min size | 50-350mm | |
| Feeding accuracy | ±0.08mm | |
| Production takt | 400-800pcs/h | |
| Dimensions | 2360* 1050*2370mm | |
| Weight | 960kg | |
| Single/double detection | Using BlackKing Kong or AstroBoyDetector | |
| Applicable Products | round. square. shaped | |
