Application

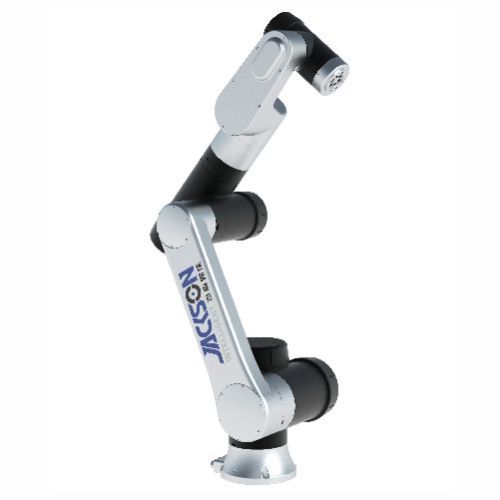

Jackson industrial robot arm will replace human beings and do some simple repetitive and mass produced work. It applied for the process of blanking, loading,deburring, assembly, detection and carrying.
Advantages
By servo control and optimized robotic arm structure design, the robot arm has the feature of high speed, high precision and high performance action. At the same time, the working range of each axis is expanded, and the slender mechanical arm ensures a larger working area. it fits for workpiece compact units. In addition, its maximum arm radius can be reached 1456mm.

Main Technical Parameter
| Structure style | Verticalmulti-joint robot | |
| Degree of freedom | 6 axis | |
| Payload | 20 KG | |
| Max radius of activity | 1456 mm | |
| Repeated positioning accuracy | ±0.05mm | |
| Activity range | S axis | ±150° |
| L axis | ±145° | |
| U axis | -90° +165° | |
| R axis | ±135° | |
| B axis | ±145° | |
| T axis | ±360° | |
| Body weight | 82KG | |
| Environmental conditions | Temperature | 0~45° |
| Humidity | 20- 80%RH(No condensation) | |
| Vibration | Below 4.9m/S2 | |
| No flammable and corrosive gas or liquid Do not involve water, oil, powder Do not approach the source of electromagnetic gas |
||
| Battery capacity | 3.50KVA | |
