Application

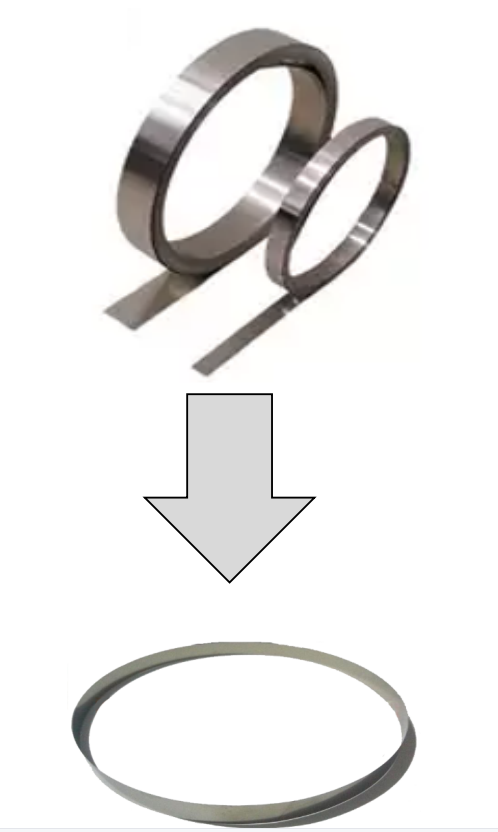

To make the stainless steel ring
Advantage
◎Laser welding ,no gap and not black in the ring
◎Typing on the steel ring (optional)
◎Capacity: 600-840pcs/Hour

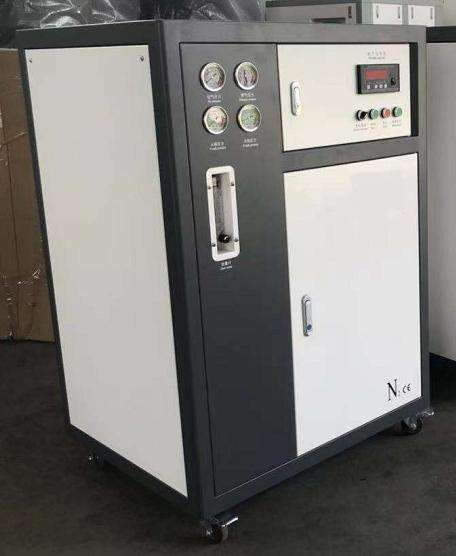

The steel belt making machine can use with the nitrogen generator.
The function of nitrogen generator can make the steel ring welding seam nicer, and not become black.

Main Technical Parameter
|
Model |
JS-RLW-K60 |
JS-RLW-K90 |
JS-RLW-K160 |
|
Type |
Automatic |
Automatic |
Automatic |
|
Steel Strip Width |
15mm-52mm |
40mm-92mm |
80mm-160mm |
|
Steel Strip Thickness |
0.18mm-0.7mm |
0.2mm-0.5mm |
0.2mm-0.4mm |
|
Minimum Diameter of Steel Ring |
60mm |
100mm |
120mm |
|
Maximum Diameter of Steel Ring |
700mm |
700mm |
700mm |
|
Welding Speed |
15 pieces / min |
12 pieces / min |
10 pieces / min |
|
Laser Power |
1000W(1500W optional) |
1000W(1500W optional) |
1000W(1500W optional) |
|
Overall Power |
5KW |
5KW |
5KW |
|
Equipment Weight |
1350kg |
1450kg |
1450kg |
|
Equipment Size |
1480*1280*1680mm |
1700*1280*1680mm |
1700*1280*1680mm |
|
Input Voltage |
220V Single-phase |
220V Single-phase |
220V Single-phase |
|
Nitrogen Protection |
optional |
optional |
optional |
|
Coding Function |
optional |
optional |
optional |
|
Cooling Method |
external water-cooling |
external water-cooling |
external water-cooling |
