Application

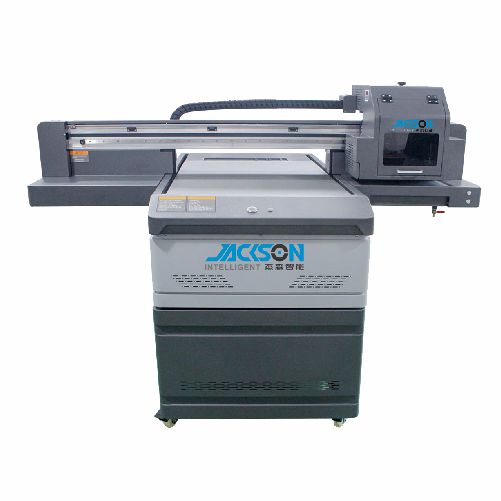

UV printer AC-6090 with its own ink temperature control system, can be used for glass acrylic, tile, metal plate, cardboard and other printing.
Advantages
◎White and color synchronous printing function
White and color 2 layer printing can be done at the same time.
◎Support white color relief effect.
◎ Its efficiency become to geometric multiple improvement.
◎Horizontal and vertical can realize a variety of printing methods, color or white bottom cover can be free set.
Main Technical Parameter
| Equipment model | AC-6090 circular flat integrated printer | ||
| Nozzle settings | RICOH G5i nozzle head 2-4pcs optional | Working size | Width 600mm*length 900mm |
| Nozzle accuracy | 3.5PL | Printing speed |
4m2-6m2 |
| Ink color | CMYK+W+V | Printing height | 2-100mm(custom-mode250-350mm) |
| RIP App | RIPrint/ONYX | Print resolution | 720/960* 1 200dpi |
| Curing method | Wind cooling LED curing | Power requirements | 220V/1 500W |
| Lifting method | Car lift+automatic Height measurement | Operation system | Windows 7 Ultimate 64-bit |
| Transfer method | THK guide+Double screw | Environmental requirement | Temperature 20 28°C Relative humidity40 -60% |
| Machine Weight | 400kg | Machine size | Width1850* length 1550*height 1350mm |
