Application:

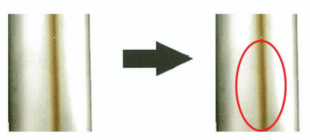

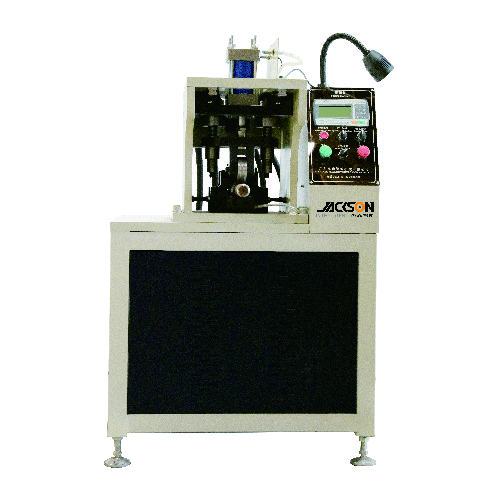

Welding Line Rolling Machine, It is mainly used for rolling at the weld seam of stainless steel pipe to carry out the process of leveling the weld seam.
Align the welding seam of the product with the pressing wheel and press the start button to complete the operation.
The machine has the characteristics of high efficiency and good quality of rolling seam.
Advantage:
1.Flatting pipe ends to help continuous neck&mouth shape forming, spinning, threading, and polishing avoid wrinkle broken.
2.Strong force available for thin &thick material both.
3.High capacity.

Main Technical Parameters
| Model | JSB-R1012 |
| Function | Rolling press pipe ends welding line, make it flat & smooth |
| Technology | Rotary blade cutting, hydraulic |
| Working length | 0-100mm |
| Working pipe diameter | 40-120mm |
| Cutting Speed |
6000-8000pcs/8h |
| Voltage | 380V~/415V~ |
| Power | 2.2KW |
| Air pressure | 0.6Mpa |
| Size | 850*1000*1400mm |
| Weight | 310kg |
